KEL-ER CR Split Cable Entry Frame
Split cable entry frames for use in cleanrooms
- Split cable entry system for routing and sealing cables with connectors, providing an IP66 / UL Type 12/4X* rating
- Strain relief for cable diameters from 1 to 16 mm (single-hole grommets KT CR 1 - 15) and 16 to 35 mm (single-hole grommets KT CR 16 - 34)
- The KEL-ER CR frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors
- Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed
- The KEL-ER-B CR frame matches the cut-out dimensions of 46 × 46 mm measuring instruments.
- The single-row versions KEL-ER-E CR are particularly suited for flat connectors
- A flat rubber gasket is included in the shipment
- The products with part number ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1
- And the materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- The products with the article ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
- IP Rating: IP66 / UL Type 12/4X
- Material: Polyamide
- Flame Class: UL94-V0, self-extinguishing
- Operating Temperature: -40 C° to 140 C°
- Vibation Proof
- UV-resistant
- Silicone free
- Anti corrosion (V2A versions)
- Halogen free
- Screw type mounting
- Mounting Height: 17mm
-

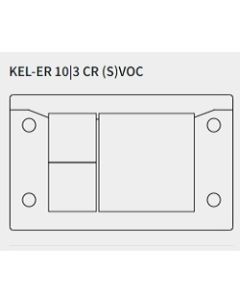

KEL-ER 10|3 CR (S)VOC | 48212.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 3 cables, Cut out size 65 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

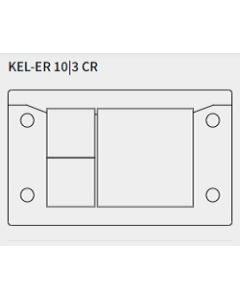

KEL-ER 10|3 CR | 48212.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 3 cables, Cut out size 65 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

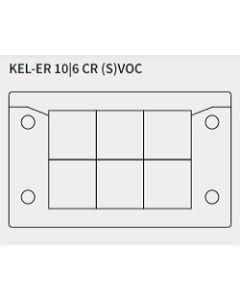

KEL-ER 10|6 CR (S)VOC | 48216.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 6 cables, Cut out size 65 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

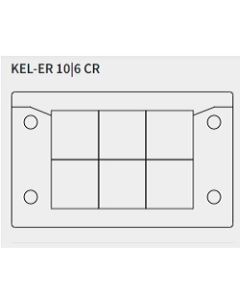

KEL-ER 10|6 CR | 48216.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 6 cables, Cut out size 65 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

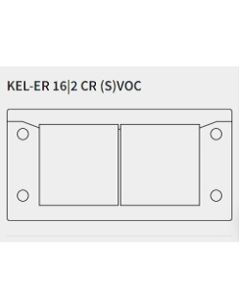

KEL-ER 16|2 CR (S)VOC | 48162.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 2 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

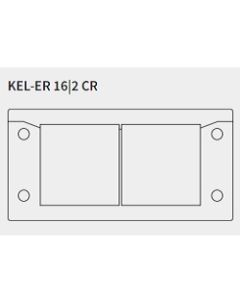

KEL-ER 16|2 CR | 48162.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 2 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

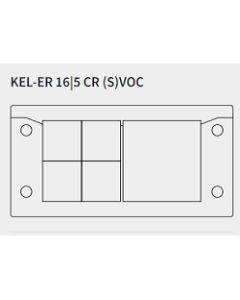

KEL-ER 16|5 CR (S)VOC | 48165.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 5 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

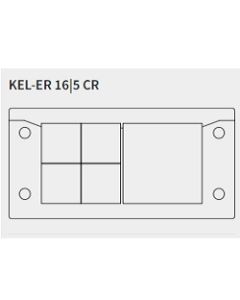

KEL-ER 16|5 CR | 48165.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 5 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

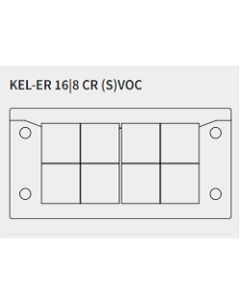

KEL-ER 16|8 CR (S)VOC | 48168.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 8 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

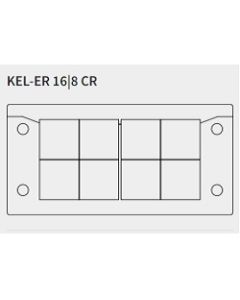

KEL-ER 16|8 CR | 48168.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 8 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

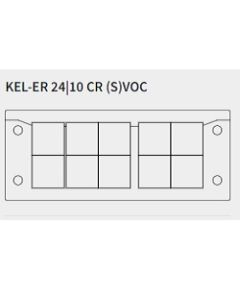

KEL-ER 24|10 CR (S)VOC | 48241.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 10 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

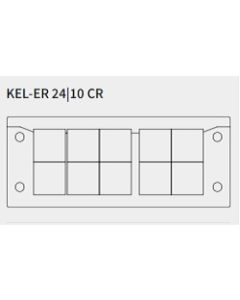

KEL-ER 24|10 CR | 48241.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 10 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
