Multi Membrane Cable Grommets

The KT-DT cable grommets can be used anywhere where a large number of electrical, pneumatic or hydraulic lines must be routed and sealed
Ingress Protection: IP54
Using the KT-DT grommets, the cable density can be significantly increased
KT-DT grommets are compatible with split icotek cable entry frames
Routing of cables with and without preassembled connectors in one cable entry frame

The QT-DT cable grommets can be used anywhere where a large number of electrical, pneumatic or hydraulic lines must be routed and sealed

Ingress Protection IP54U

Using the QT-DT grommets, the cable density can be significantly increased.

QT-DT grommets are compatible with split icotek cable entry frames KEL-QUICK and KEL-QTA

The routing of cables with and without preassembled connectors in one cable entry frame can thus be easily combined.

icotek 41500 | KT - DT1 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 12 max. 6.5 mm + 2 max. 12.2 mm
icotek 41510 | KT - DT2 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 16 x 1 -7.1 mm
icotek 41520 | KT - DT3 | Cable Grommet
Cable Grommet, For use with split icotek cable entry frames, For cables without connectors, Number of Cables: 4 max.6.5 mm + 3 max. 9.5 mm + 3 max. 11.3 mm
icotek 41530 | KT - DT4 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 9 x 1 - 9.5 mm
icotek 41540 | KT - DT 5 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 4 max. 14.5 mm + 1 max. 9.5 mm
icotek 41550 | KT - DT 7 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without preassembled connectors, Number of Cables: 4 x. 1 -6mm
icotek 41552 | KT - DT 8 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 2 max. 7 mm + 2 max. 4 mm
icotek 42550 | QT - DT1 | Cable Grommet
Membrane Cable Grommet, Clamping range: 4 × 1 - 6.5 mm, For wire type: Round cable

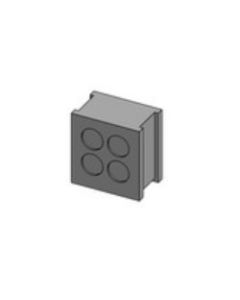

icotek 42551 | QT - DT2 | Cable Grommet
Membrane Cable Grommet, Clamping range: 2 × 1 - 3.5 mm, 2 × 1 - 6.5 mm, For wire type: Round cable

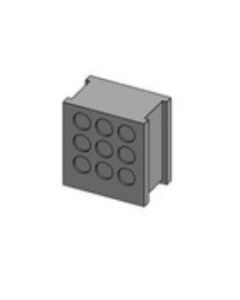

icotek 42552 | QT - DT3 | Cable Grommet
Membrane Cable Grommet, Clamping range: 9 × 1 - 3.5 mm, For wire type: Round cable
