QT Compact Cable Grommets for QUICK systems
Slit Compact Cable Grommets
- Suitable for KEL-QUICK cable entry frames and QVT cable glands
- The QT range supports cable diameters from 1 to 15 mm
- They are used with the following cable entry frames: KEL-QUICK, QVT, QVT-CLICK, KEL-QTA
- When installing the grommets, the flat side should be facing the middle of the frame
- This allows the flat sides of adjacent grommets to match up and provide a secure seal
- Enable routing of pre-terminated cables through cable entry frames and split cable glands
- Material: Elastomer
- Colour: Grey (similar RAL 7035)
- Flame class: UL94-V0, self-extinguishing
- Temperature: -40°C to 100°C (static)
- Properties: Halogen-free, Silicone-free
- Mounting height: 2 mm
-

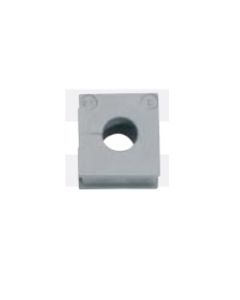

42514 | QT 14 Grey | GrommetQT Cable Grommet, Clamping Range: 14-15mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -
42571 | QT 2/5,5 Grey | GrommetQT Cable Grommet, Clamping Range: 2 x 5.5mm diameter, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -
42573 | QT ASI I Grey | GrommetQT Cable Grommet, Clamping Range: 1 x ASI Cable, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -

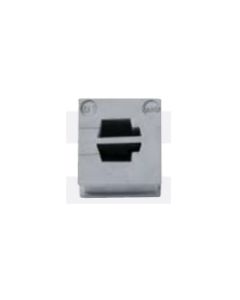

42574 | QT ASI 2 Grey | GrommetQT Cable Grommet, Clamping Range: 2 x ASI Cable, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -
42575 | QT Tele Grey | GrommetQT Cable Grommet, Clamping Range: Telephone Cable, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -
42576 | QT 2/6,5 Grey | GrommetQT Cable Grommet, Clamping Range: 2 x 6.5mm diameter, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
42580 | QT 4/3 Grey | GrommetQT Cable Grommet, Clamping Range: 4 x 3mm diameter, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing -
42582 | QT 4/4 Grey | GrommetQT Cable Grommet, Clamping Range: 4 x 4mm diameter, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
42583 | QT 4/4,5 Grey | GrommetQT Cable Grommet, Clamping Range: 4 x 4.5mm diameter, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
42585 | QT 4/5,5 Grey | GrommetQT Cable Grommet, Clamping Range: 4 x 5.5mm diameter, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42501 | QT1 Grey | GrommetQT Cable Grommet, Clamping Range: 1-2mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
-
icotek 42502 | QT 2 Grey | GrommetQT Cable Grommet, Clamping Range: 2-3mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
