F Type Connectors
F type Miniature Connectors
- F type are low cost 50 & 75 ohm miniature connectors
- Typically used in cable TV, satellite TV, CATV and cable modem installations.
- F type have a screw coupling and commonly use the solid centre conductor of the cable as the centre contact
- Versions with a loose contact are available.
-

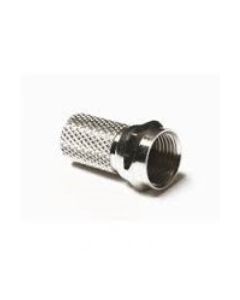

15-004-ZO-AG | 15004Z0AG | F Type Twist on PlugF Type Twist-On straight 75 ohm plug. Fit to cable using Twist-On termination for Mini RG59 or similar cables in group AG. -
15-005-A6-AB | 15005A6AB | F Type Crimp PlugF Type Crimp / Crimp plug straight 75 ohm plug. Gold plated centre contact, Suitable for use on RG179 and similar cables in group AB. -
15-005-B36-1-FA | 15005B361FA | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for Belden 1855ENH and similar cables in group FA -

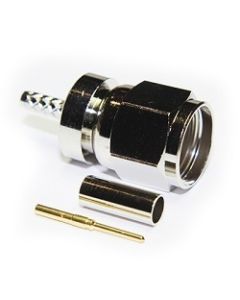

15-005-B36-1-FE | 15005B361FE | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for Belden 1855ENH and similar cables in group FE -
15-005-B36-AB | 15005B36AB | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for RG179 and similar cables in group AB -
15-005-B36-FA | 15005B36FA | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for Belden 1855ENH and similar cables in group FA -
15-005-B36-FB | 15005B36FB | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for Belden 1505A and similar cables in group FB -
15-005-B36-FC | 15005B36FC | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for Belden 1694A and similar cables in group FC -

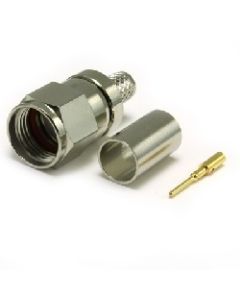

15-005-B36-FE | 15005B36FE | F Type Crimp PlugF Type Crimp / Crimp plug straight True 75 ohm plug. Gold plated centre contact, Suitable for Belden 1505F and similar cables in group FE -

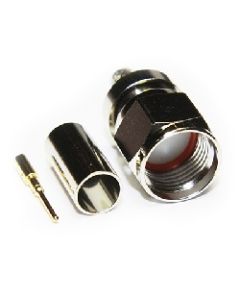

15-005-B36-FG | 15005B36FG | F Type Crimp PlugF Type Crimp / Crimp Plug straight True 75 ohm plug. Gold plated centre contact, Suitable for CM2231, CM3641 and similar cables in group FG -

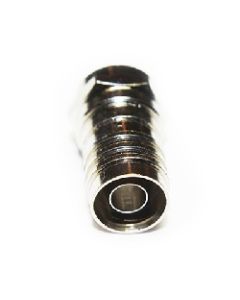

15-015-Z0-AI | 15015Z06AI | F Type Integral Crimp PlugF Type single piece integral Crimp plug straight 75 ohm plug. Suitable for RG59 and similar cable in group AI. -

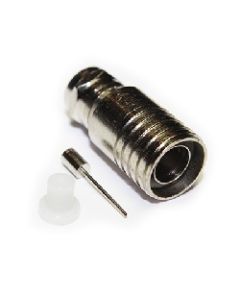

15-015-Z0-AN | 15015Z06AN | F Type Integral Crimp PlugF Type single piece integral Crimp plug straight 50 ohm plug. Gold plated centre contact, Suitable for RG213 and similar cable in group AN.
