Flexible Cable Grommets, Multi Range
Flexible multi range cable grommet for various cable diameters.
KT-SC Large, Series
- The KT-SC grommets accept a wide range of cable diameter
- Based on the large KT grommet and enables flexible routing
- For sealing electrical cables and pneumatic hoses with diameters from 5 – 28 mm
- Suitable for KEL / -U / KVT
KTMB Series
- The KTMB grommets accept a wide range of cable diameters
-
- The KTMB grommets are not split and therefore only useable for cables without connectors
- Cable Diameters for KTMB Small: 2.5 to 16mm
- Suitable for KEL / -U / KVT
-

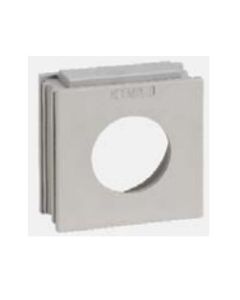

41470 | KTMB-I Grey | GrommetMulti Rangeable Grommet, Clamping Range: 23 - 28mm, For Cable without Connectors, Material: Elastomer -
41480 | KTMB-K Grey | GrommetMulti Rangeable Grommet, Clamping Range: 2 x 13 - 18mm, For Cable without Connectors, Material: Elastomer -

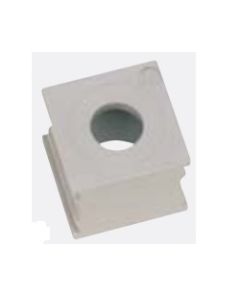

icotek 41432 | KTMB-A Grey | GrommetMulti Rangeable Grommet, Clamping Range: 2.5 - 6.5mm, For Cable without Connectors, Material: Elastomer -
icotek 41434 | KTMB-B Grey | GrommetMulti Rangeable Grommet, Clamping Range: 4 - 7.5mm, For Cable without Connectors, Material: Elastomer
-
icotek 41436 | KTMB-C Grey | GrommetMulti Rangeable Grommet, Clamping Range: 6.5 - 10mm, For Cable without Connectors, Material: Elastomer
-
icotek 41438 | KTMB-D Grey | GrommetMulti Rangeable Grommet, Clamping Range: 9.5 - 13mm, For Cable without Connectors, Material: Elastomer
-
icotek 41440 | KTMB-E Grey | GrommetMulti Rangeable Grommet, Clamping Range: 13 - 16mm, For Cable without Connectors, Material: Elastomer -
icotek 41460 | KTMB-G Grey | GrommetMulti Rangeable Grommet, Clamping Range: 13 - 18mm, For Cable without Connectors, Material: Elastomer
-
icotek 41465 | KTMB-H Grey | GrommetMulti Rangeable Grommet, Clamping Range: 18 - 23mm, For Cable without Connectors, Material: Elastomer
-
icotek 41475 | KTMB-J Grey | GrommetMulti Rangeable Grommet, Clamping Range: 28 - 33mm, For Cable without Connectors, Material: Elastomer
-

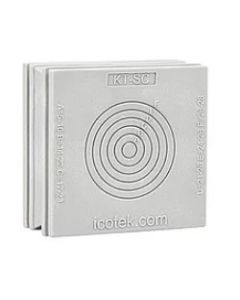

icotek 41485 | KT - SC | Cable GrommetMulti-Range Membrane Cable Grommet, Clamping range: 5 - 28 mm, For wire type: Round cable
