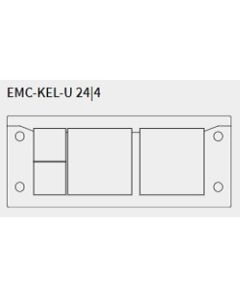

EMC-KEL-U | Split EMC cable entry frames

• The EMC cable entry frames EMC-KEL-U are based on the KEL-U and KEL-E. Due to a conductive surface, disturbances in the cable shields on the control cabinet can be easily dissipated.
• The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.

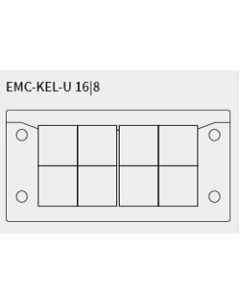

• The EMC-KEL-U frames match exactly the cut-out dimensions for 16- and 24-pin standard industrial connectors.
• Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed.

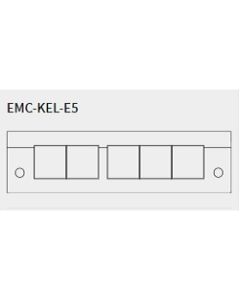

• The single-row versions EMC-KEL-E are particularly suited for flat connectors.
• The small frames are ideal for applications with limited space.

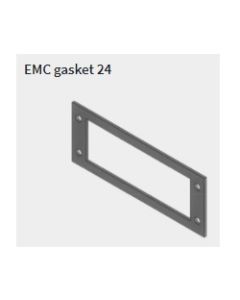

• Between the EMC-KEL-U and the metal wall a conductive flat gasket (included) is mounted.
• The flange surface on the metal wall must be free of paint!
• Both conducted and field-bound disturbances can be reliably diverted
• Scratch-resistant surface
• Contacting the cable shield over 360°
• EMC grommets made entirely from conductive elastomer
• High cable density, wide variety of grommets
• Very good dissipation values
• Very good shielding effect with regard to EMC tightness
