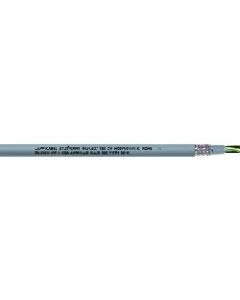

Lapp OLFLEX 150 CY

ÖLFLEX® 150 CY Screened and oil-resistant multi-standard cable

  • Oil-resistant according to EN 50363-4-1: TM5
  • Harmonised (HAR): H05VVC4V5-K and UL recognized
  • EMC-compliant
  • Good chemical resistance
  • Flame-retardant according to IEC 60332-1-2 and UL 1581 §1061 Cable Flame Test
  • High degree of screening
  • Low transfer impedance (max. 250 Ω/km at 30 MHz)
  • Tinned-copper braiding
  • PVC outer sheath,
  • Outer Sheath colour: Grey (similar to RAL 7001)

Application range

  • Plant engineering
  • Industrial machinery
  • Heating and air-conditioning systems
  • For useIn EMC-sensitive environments (electromagnetic compatibility)
  • Mainly used in dry, damp and wet interiors (including water-oil mixtures)
  • Not for outdoor use
  • For fixed installation under medium mechanical load conditions,
  • For applications with occasional flexing at free, noncontinuously recurring movement without tensile load or compulsory guidance
  • For the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 Ed. 2015:
