KT CR multi / Special cable grommets
KT CR multi / Special cable grommets
For use in cleanrooms, 1 - 8 mm
- KT CR multi-hole and special grommets enable a sealing of the cables with IP54 and UL Type 12
- When using double or quadruple grommets the cable density of cleanroom cable entry frames can be greatly increased
- The multi-hole model range KT CR small is designed for cable diameters from 1 to 8 mm
- ATG CR adapter grommets provide the possibility to hold a small KT CR grommet to reduce the clamping range down to 1 mm.
- When installing the small grommets in multiple rows, the flat sides should be facing each other
- This allows the flat sides to match up and provide a secure seal.
- The products with article ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
- And the materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17).
- The products with the article ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
- IP Rating: IP54
- UL Type 12
- Material: Elastomer
- Flame Class: UL94-V0, self-extinguishing
- Operating Temperature: -40 C° to 100 C°
- Silicine free
- Halogen Free
-
ATG CR (S)VOC gy | 41253.600 | KT CR cable grommetsCable grommet KT CR special, Large, Operating temperature: -40°C to 100°,C, IP68 -

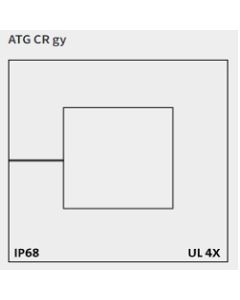

ATG CR gy | 41253.601 | KT CR cable grommetsCable grommet KT CR special, Large, Operating temperature: -40°C to 100°,C, IP68 -

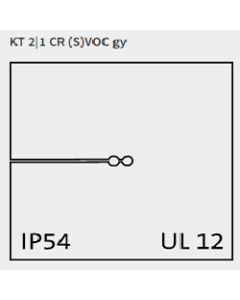

KT 2|1 CR (S)VOC gy | 39942.600 | KT CR cable grommetsCable grommet KT CR, Multi small Suitable for round cables, Clamping Range: 2 x 1mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|1 CR gy | 39942.601 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 1mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|2 CR (S)VOC gy | 39935.600 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 2mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|2 CR gy | 39935.601 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 2mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|3 CR (S)VOC gy | 39939.600 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 4mm, Operating temperature: -40°C to 100°,C, IP54, -
KT 2|3 CR gy | 39939.601 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 3mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|4 CR (S)VOC gy | 39906.600 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 4mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|4 CR gy | 39906.601 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 4mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|5 CR (S)VOC gy | 41200.600 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 5mm, Operating temperature: -40°C to 100°,C, IP54 -
KT 2|5 CR gy | 41200.601 | KT CR cable grommetsCable grommet KT CR Multi small, Suitable for round cables, Clamping Range: 2 x 5mm, Operating temperature: -40°C to 100°,C, IP54
