Split EMC Cable Glands
For shielding cables with connectors
- The first cable grommet (KT) is used for strain relief and cable sealing on the cable jacket.
- The second grommet (EMC-KT) contacts the cable shield at a full 360 degrees.
- The conductive flat gasket included in the scope of delivery makes contact between the cable gland and the conductive housing wall.
- The EMC-KVT-DS can thus be fixed using a plastic lock nut.
- Alternatively, an additional contact to the metal wall can be made using a special EMC lock nut.
- Both conducted and field-bound disturbances can be reliably diverted Scratch-resistant surface
- Contacting the cable shield over 360° EMC grommets made entirely from conductive elastomer
- Very good dissipation values
- Very good shielding effect with regard to EMC tightness
- Flame Class UL94-40, self Extinguishing
-
99431 | EMC-KVT-DS 32 with plastic locknutEMC-KVT-DS 32 with plastic locknut, Max cable diameter 17mm, Max number of cables 1 -
99432 | EMC-KVT-DS 32 with EMC locknutEMC-KVT-DS 32 with EMC locknut, Max cable diameter 17mm, Max number of cables 1 -
99434 | EMC-KVT-DS 63\1 with plastic locknutEMC-KVT-DS 63\1 with plastic locknut, Max cable diameter 35mm, Max number of cables 1 -
99435 | EMC-KVT-DS 63\1 with EMC locknutEMC-KVT-DS 63\1 with EMC locknut, Max cable diameter 35mm, Max number of cables 1 -
99436 | EMC-KVT-DS 63\4 with Plastic locknutEMC-KVT-DS 63\4 with plastic locknut, Max cable diameter 17mm, Max number of cables 4 -
99437 | EMC-KVT-DS 63\4 with EMC locknutEMC-KVT-DS 63\4 with EMC locknut, Max cable diameter 17mm, Max number of cables 4 -

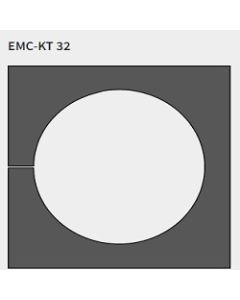

99491 | EMC-KT 32 | Large Cable GrommetEMC - KT 32 Large Split Cable Grommet, Clamping Range: 32 - 33 mm, Material: Elastomer, Conductive, Flame Class: UL94-HB -
-
-
-
