N Type Jacks
N Type are a rugged screw coupled connector
- Mid sized series of connectors
- With versions available for use up to 11 GHz.
- N Type connector interface is according to Mil 30912 and are sealed to IP67 when mated.
- 75 ohm versions of N Type are also available.
Note : 50 and 75 Ohm version of N Type connectors are not compatible and permanent damage to the connector may occur if mated.
-

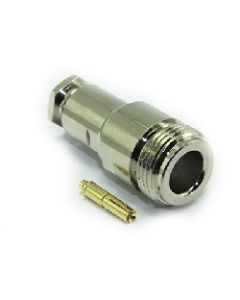

25-050-B3-AH | 25050B3AH | Solder / Top Hat Clamp JackN Type 50 ohm straight jack. With soldered centre contact and Top Hat clamped braid, Suitable for use with RG58 or similar cables in group AH -
25-050-B3-AN | 25050B3AN | Solder / Top Hat Clamp JackN Type 50 ohm straight jack. With soldered centre contact and Top Hat clamped braid, Suitable for use with RG213 or similar cables in group AN -

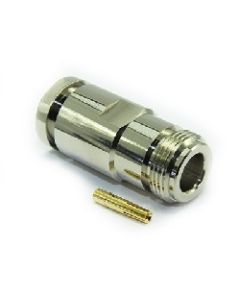

25-050-B6-AI | 25050B6AI | N Type Solder / Clamp JackN Type 75 ohm straight jack. With soldered centre contact and clamped braid, Suitable for use with RG59 or similar cables in group AI -

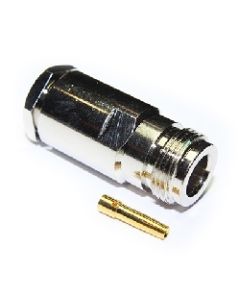

25-051-B3-AN | 25051B3AN | N Type Solder / Clamp JackN Type 50 ohm straight jack. With soldered centre contact and clamped braid, Suitable for use with RG213 or similar cables in group AN -

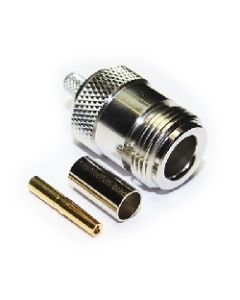

25-054-B3-AH | 25054B3AH | N Type Crimp JackN Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG58 or similar cables in group AH. -
25-054-B3-AK | 25054B3AK | N Type Crimp JackN Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG223 or similar cables in group AK -

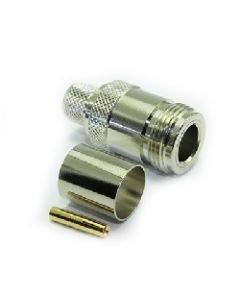

25-054-B3-AN | 25054B3AN | N Type Crimp JackN Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG213 or similar cables in group AN -

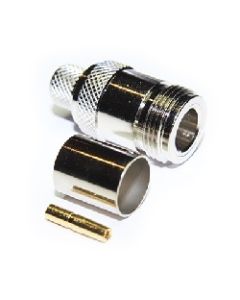

25-054-B3-AO| 25054B3AO | N Type Crimp JackN Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG214 or similar cables in group AO -
25-054-B3-DB | 25054B3DB | N Type Crimp JackN Type 50 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with Times LMR®240 or similar cables in group DB. -

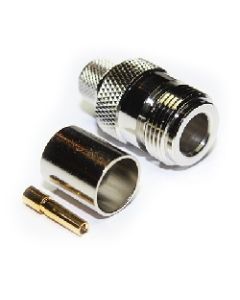

25-054-B3-DE | 25054B3DE | N Type Crimp JackN Type 50 ohm Solder / crimp straight jack. With gold plated centre contact, Suitable for use with Times LMR®400 or similar cables in group DE -

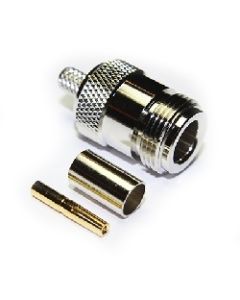

25-054-B6-AI | 25054B6AI | N Type Crimp JackN Type 75 ohm full crimp straight jack. With gold plated centre contact, Suitable for use with RG59 or similar cables in group AI.. -

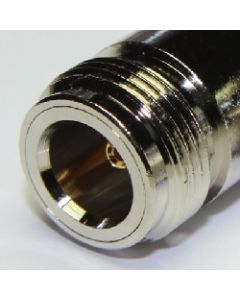

25-067-B3-DH | 25067B3DH | Easy Fit / Clamp JackN Type 50 ohm Easy Fit straight jack for simple termination to cable. Suitable for use with Times LMR®400 or similar cables in group DH
