KEL-U CR Split Cable Entry Frame
Split cable entry frame, IP54 / UL Type 12
Grommet based cable entry frames
- Suitable for cut-outs of heavy industrial connectors.
- Available as single or double row version.
- Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
- The KEL-U CR frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors
- Either a cut-out of 36 mm or 46 mm in height
- The single-row versions KEL-E CR are particularly suited for flat connectors
- A flat rubber gasket is included in the shipment.
- The products with part number ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
- And the materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- The products with the part number ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
- IP Rating: IP54
- Material: Polyamide
- Flame Class: UL94-V0, self-extinguishing
- Operating Temperature: -40 C° to 140 C°
- Vibation Proof
- UV-resistant
- Silicone free
- Anti corrosion (V2A versions)
- Halogen free
- Screw type mounting
- Mounting Height: 17mm
-
KEL-U-16|2 CR (S)VOC | 54162.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 2 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

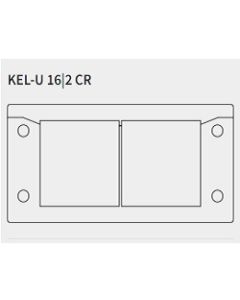

KEL-U-16|2 CR | 54162.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 2 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

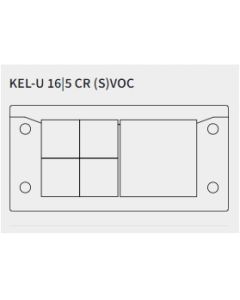

KEL-U-16|5 CR (S)VOC | 54165.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 17 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

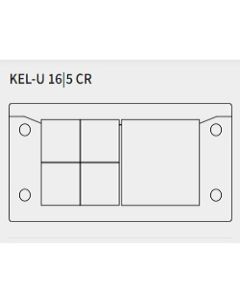

KEL-U-16|5 CR | 54165.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 17 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

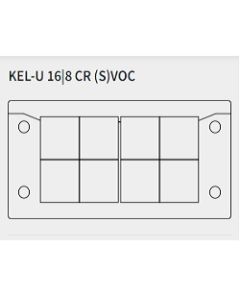

KEL-U-16|8 CR (S)VOC | 54168.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 32 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

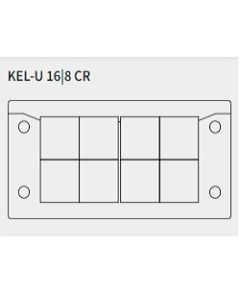

KEL-U-16|8 CR | 54168.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 32 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

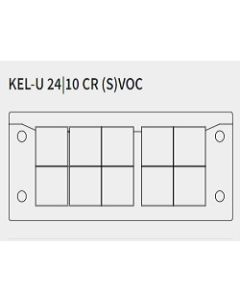

KEL-U-24|10 CR (S)VOC | 54241.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 40 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -
KEL-U-24|10 CR | 54241.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 40 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

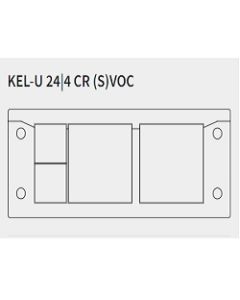

KEL-U-24|4 CR (S)VOC | 54244.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 6 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

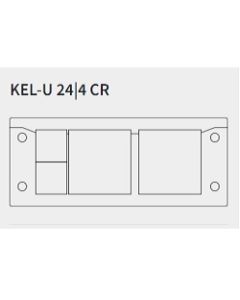

KEL-U-24|4 CR | 54244.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 6 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

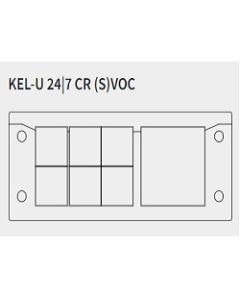

KEL-U-24|7 CR (S)VOC | 54247.600 | Split Cable Entry FrameSplit Cable Entry Frame, Max 25 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm -

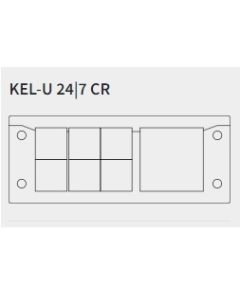

KEL-U-24|7 CR | 54247.601 | Split Cable Entry FrameSplit Cable Entry Frame, Max 25 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
