UHF Connectors
UHF are a range of 50 ohm connectors
- For low frequency RF applications
- UHF are screw (5/8 x 24UNEF) coupled and suitable for use up to 300MHz
- Typically used in amateur radio, CB radio and VHF
-
20-005-A0-AD | 20005A0AD | UHF Crimp PlugUHF full crimp straight plug with gold plated contact and nickel plated body. Suitable for use with RG174 and similar cables in group AD -

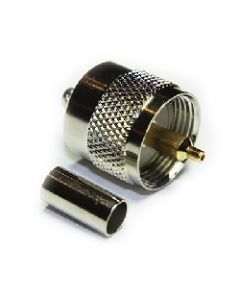

20-005-A0-AH | 20005A0AH | UHF Crimp PlugUHF full crimp straight plug with gold plated contact and nickel plated body. Suitable for use with RG58 and similar cables in group AH -
20-016-A0-AN | 20016A0AN | UHF Solder / Twist on PlugUHF straight plug with soldered contact and Twist-On tool less fixing for the braid and jacket Suitable for use with RG13 and similar cables in group AN -

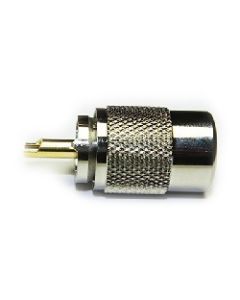

20-016-A0-AO | 20016A0AO | UHF Solder / Twist on PlugUHF straight plug with soldered contact and Twist-On tool less fixing for the braid and jacket Suitable for use with RG214 and similar cables in group AO -

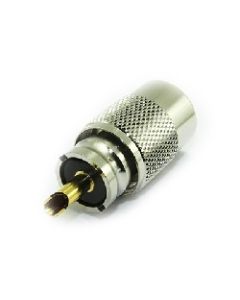

20-016-K0-AH | 20016K0AH | UHF Solder / Twist on PlugUHF straight plug with soldered contact and Twist-On tool less fixing for the braid and jacket Suitable for use with RG58 and similar cables in group AH -
20-016-K1-AH | 20016K1AH | UHF Solder / Twist on PlugUHF straight plug with soldered contact and Twist-On tool less fixing for the braid and jacket Suitable for use with RG213 and similar cables in group AH -
20-050-G0-AH | 20050G0AH | UHF Solder / Clamp JackUHF straight solder clamp jack. The silver plated inner contact is soldered and the braid and jacket are clamped. For RG58 and similar cables in group AH -

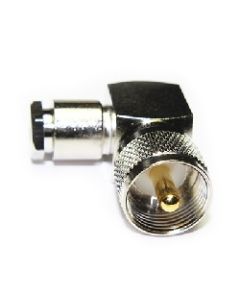

20-100-A3-AH | 20100A3AH | UHF R/A Solder / Clamp PlugUHF right angle solder clamp plug. Gold plated inner contact is soldered and braid and jacket are clamped Suitable for RG58 and similar cables in group AH -

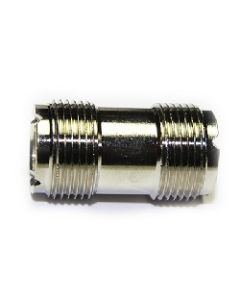

20-500-A0 | 20500A0 | UHF Straight Jack to Jack AdaptorUHF straight jack to jack adaptor with gold plated centre contact and nickel plated body -

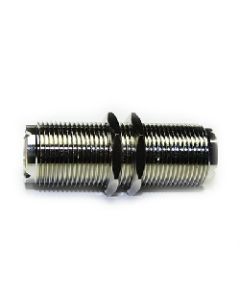

20-501-A0 | 20501A0 | UHF Straight Bulkhead Jack to JackUHF straight bulkhead mounted jack to jack adaptor with gold plated centre contact and nickel plated body. -

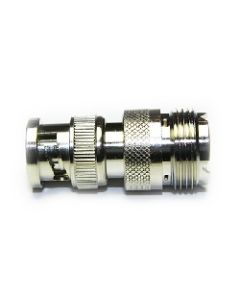

74-1020-511 | 741020511 | BNC Plug to UHF Jack AdaptorInter-Series adaptor for connection between different connector families. BNC Plug to UHF Jack Straight Adaptor -

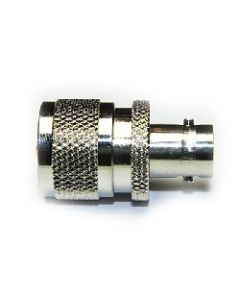

74-1020-534 | 741020534 | BNC Jack to UHF Plug AdaptorInter-Series adaptor for connection between different connector families. BNC Jack to UHF Plug Straight Adaptor
