Type 43 or SMZ coaxial connector
Originally designed for British Telecom
- Used in their digital networks within the telephone exchange for circuits from 2Mbit to 640Mbit.
- These 75 ohm connectors were adopted by other network operators around the world.
- Type 43 evolved into HDC43 and UHDC43, all with the same standard interface meeting BS9210 F0022 and BT's RC8003 standards
- Each having different body sizes to suit alternative equipment practices.
- Type 43 connectors feature a secure push-pull latching mechanism and gold plated inner and outer contacts for extended life
- Standard BT Type 43 is identified by a white locking clip fitted to the plug body.
- An extraction tool is required to remove plugs from the distribution frame.
-

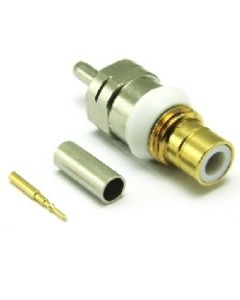

43-011-D6-AB | 43011D6AB | P43/4GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames,for RG179 and similar cables in group AB -
43-011-D6-BD | 43011D6BD | P43/5GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames,for BT3002 and similar cables in group BD -

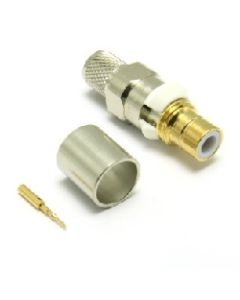

43-011-D6-BE | 43011D6BE | P43/6GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames,for BT5000 and similar cables in group BE -

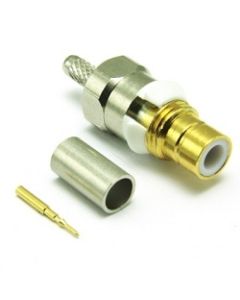

43-011-D6-BF | 43011D6BF | P43/7GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames,for RA7000 and similar cables in group BF -

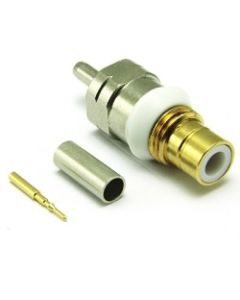

43-011-D6-BG | 43011D6BG | P43/8GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames,for RA7000 and similar cables in group BF -

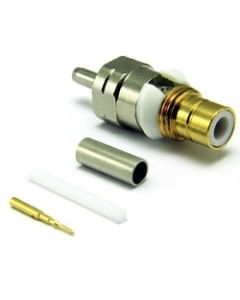

43-011-D6-BI | 43011D6BI | P43/8GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames, for 1.6mm Micro coax with 0.25mm centre conductor -
43-011-D6-BJ | 43011D6BJ | P43/GTIS BT DDF Crimp PlugBT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames, for 2.2mm Micro coax with 0.25mm centre conductor -
43-012-D6-AB | 43012D6AB | HDC43/4GTIS DDF Crimp PlugHDC 43 full crimp plug for mounting on High Density distribution frames, suitable for RG179 and similar cables in group AB. -

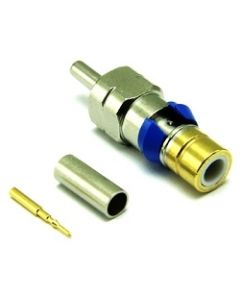

43-012-D6-AC | 43012D6AC | HDC43/RD179GTIS DDF Crimp PlugHDC 43 full crimp plug for mounting on High Density distribution frames, suitable for RD179 and similar cables in group AC. -
43-012-D6-BD | 43012D6BD | HDC43/5GTIS DDF Crimp PlugHDC 43 full crimp plug for mounting on High Density distribution frames, suitable for BT3002 and similar cables in group BD. -

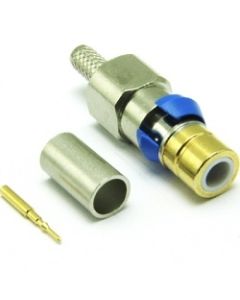

43-012-D6-BF | 43012D6BF | HDC43/7GTIS DDF Crimp PlugHDC 43 full crimp plug for mounting on High Density distribution frames, suitable for BT7000 and similar cables in group BF. -

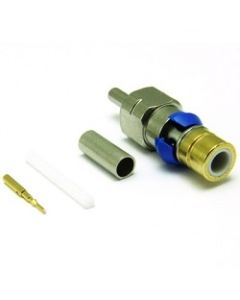

43-012-D6-BG | 43012D6BG | HDC43/8GTIS DDF Crimp PlugHDC 43 full crimp plug for mounting on High Density distribution frames, suitable for RA8000 and similar cables in group BG.
