ArcZero DC Connectors
DC connectors with ArcZero technology
DC connectors from Phoenix Contact can be safely connected and disconnected under load
Reliably protects operators against the electric arc
The new DC connector enables the time-saving maintenance or replacement of connected devices and reduces downtimes to a minimum
The shockproof DC connector was designed for use even in extreme conditions
Robust outdoor design even for extreme conditions
- Rated voltage: 400 / 800 V DC
- Rated current: 20 A
- Up to 1,000 insertion cycles
- VDE approval
-

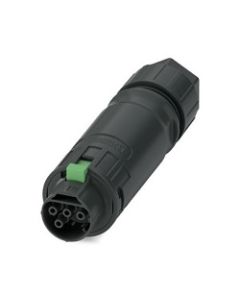

1437004 | CBC-PRC 3-FC-FS6 8-21 HR 400V | Coupler ConnectorCoupler connector, : ArcZero, black, number of poles: 3, rated voltage: 400 V DC, rated current: 20 A, Connection method: Screw connection
-
1437018 | CBC-PRC 3-FT25-MS6 400V | Panel Feed ThroughPanel feed-through, ArcZero, colour: black, number of positions: 3, rated voltage: 400 VDC, rated current: 20 A, Contact connection type: Pin
-

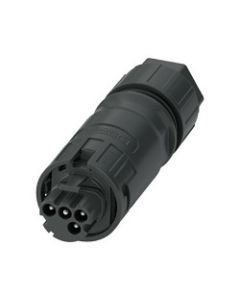

1437019 | CBC-PRC 3-FC-MS6 8-21 400V | ConnectorCoupler connector, ArcZero, black, number of poles: 3, rated voltage: 400 V DC, rated current: 20 A, Contact connection type: Pin
-
1441143 | CCBC-PRC 3-FC-FS6 8-21 HR 800V | Coupler ConnectorCoupler connector, : ArcZero, black, number of poles: 3, rated voltage: 800 V DC, rated current: 20 A, Connection method: Screw connection
-
1453450 | CBC-PRC 3-FC-MS6 8-21 800V | ConnectorCoupler connector, : ArcZero, black, number of poles: 3, rated voltage: 800 V DC, rated current: 20 A, Connection method: Screw connection
-

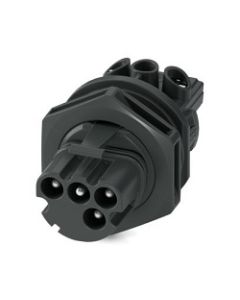

1453451 | CBC-PRC 3-FT25-MS6 800V | Panel Feed ThroughPanel feed-through, ArcZero, colour: black, number of positions: 3, rated voltage: 800 VDC, rated current: 20 A, Contact connection type: Pin
-

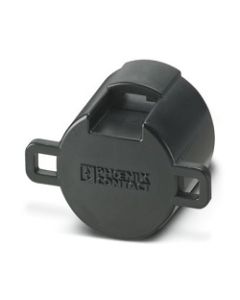

1476945 | CBC-PRC COVER M 800V | Protective CapProtective cap, Colour: black, rated voltage: 800 VDC, Fit the protective cap when not plugged in. Robust outdoor design even for extreme conditions
-

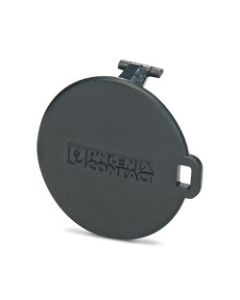

1476946 | CBC-PRC COVER F 800V | Protective CapProtective cap, Colour: black, rated voltage: 800 VDC, Fit the protective cap when not plugged in. Particularly durable and economical
