KTMBS Cable Grommets
Cable grommets KTMBS
Are used to route pre-terminated cables with the following cable entry components:
- KEL cable entry frames
- KVT split cable glands
The innovative membrane enables the routing of cables with diameters that can vary up to 3 mm.
Utilizing the KTMBS, cables with cable diameters from 4 to 29 mm can be routed.
The innovative wave cut and the flexible sealing lips make it possible to seal the cable with IP54.
Only 12 grommets cover a clamping range from 4 to 29 mm
-

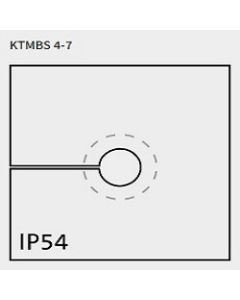

41380 | KTMBS 4-7 | Small Cable GrommetKTMBS 4-7 Small Split Cable Grommet, Clamping Range: 1 x 4 - 7 mm, Material: Elastomer, Flame Class: UL94-V0 -

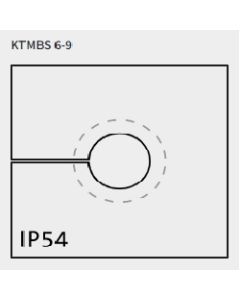

41381 | KTMBS 6-9 | Small Cable GrommetKTMBS 6-9 Small Split Cable Grommet, Clamping Range: 1 x 6 - 9 mm, Material: Elastomer, Flame Class: UL94-V0 -

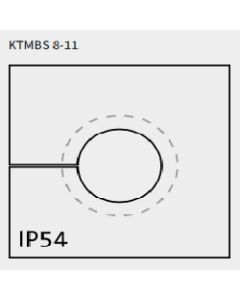

41382 | KTMBS 8-11 | Small Cable GrommetKTMBS 8-11 Small Split Cable Grommet, Clamping Range: 1 x 8 - 11 mm, Material: Elastomer, Flame Class: UL94-V0 -

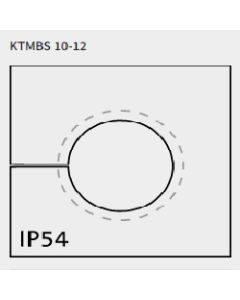

41383 | KTMBS 10-12 | Small Cable GrommetKTMBS 8-11 Small Split Cable Grommet, Clamping Range: 1 x 8 - 11 mm, Material: Elastomer, Flame Class: UL94-V0 -

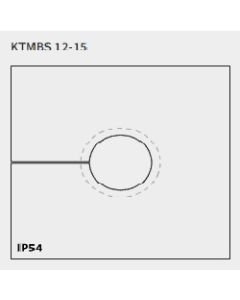

41384 | KTMBS 12-15 | Large Cable GrommetKTMBS 12-15 Large Split Cable Grommet, Clamping Range: 1 x 12 - 15 mm, Material: Elastomer, Flame Class: UL94-V0 -

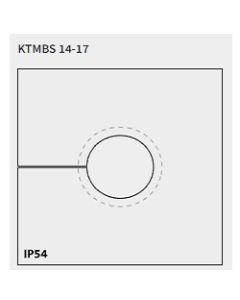

41385 | KTMBS 14-17 | Large Cable GrommetKTMBS 14-17 Large Split Cable Grommet, Clamping Range: 1 x 14 - 17 mm, Material: Elastomer, Flame Class: UL94-V0 -

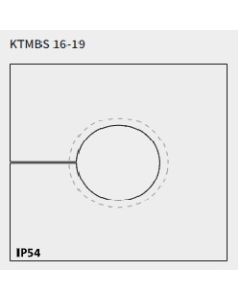

41386 | KTMBS 16-19 | Large Cable GrommetKTMBS 16-19 Large Split Cable Grommet, Clamping Range: 1 x 16 - 19 mm, Material: Elastomer, Flame Class: UL94-V0 -

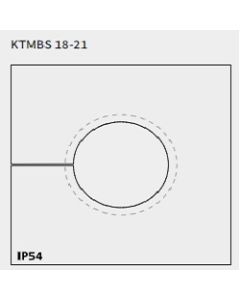

41387 | KTMBS 18-21 | Large Cable GrommetKTMBS 18-21 Large Split Cable Grommet, Clamping Range: 1 x 18 - 21 mm, Material: Elastomer, Flame Class: UL94-V0 -

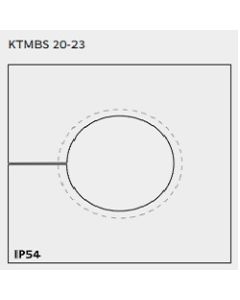

41388 | KTMBS 20-23 | Large Cable GrommetKTMBS 20-23 Large Split Cable Grommet, Clamping Range: 1 x 20 - 23 mm, Material: Elastomer, Flame Class: UL94-V0 -

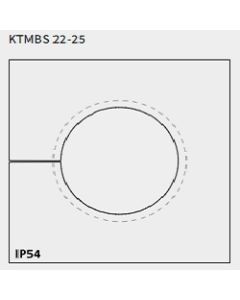

41389 | KTMBS 22-25 | Large Cable GrommetKTMBS 22-25 Large Split Cable Grommet, Clamping Range: 1 x 22 - 25 mm, Material: Elastomer, Flame Class: UL94-V0 -

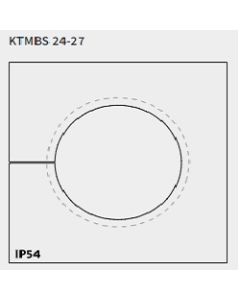

41390 | KTMBS 24-27 | Large Cable GrommetKTMBS 24-27 Large Split Cable Grommet, Clamping Range: 1 x 24 - 27 mm, Material: Elastomer, Flame Class: UL94-V0 -

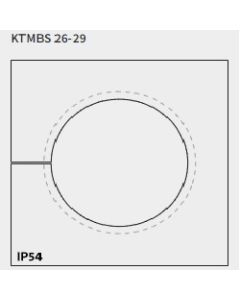

41391 | KTMBS 26-29 | Large Cable GrommetKTMBS 26-29 Large Split Cable Grommet, Clamping Range: 1 x 26 - 29 mm, Material: Elastomer, Flame Class: UL94-V0
