Cable entry, EMC shield earthing and strain relief – all in one location!
Cables pass through the KEL cable entry frame and lead directly to cable shield earthing and strain relief. Three functions carried out quickly and easily!
KEL-EMC-Z: Custom configurations are available for shield clamps up to 16 mm in diameter with minimal order quantities and lead time.
Large surface contact between cable shield and housing, especially on conductive coated surfaces
Easily combines cable routing, EMC and strain relief due to the use of the same mounting holes
Available without SKL shield clamps if only additional strain relief is required
M6 Mounting hole for earthing tape or PE connection (KEL-EMC-Z)
Direct, easy and quick contact to the enclosure
Space saving, usable for up to 10 cables with the two row model
Replacement for EMC cable glands, even for pre-terminated cables

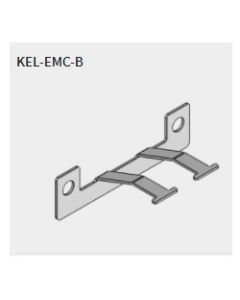

36520 | KEL-EMC-B | Cable Assembly BracketKEL-EMC-B Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 70mm

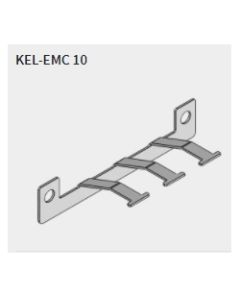

36522 | KEL-EMC 10 | Cable Assembly BracketKEL-EMC 10 Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 95mm

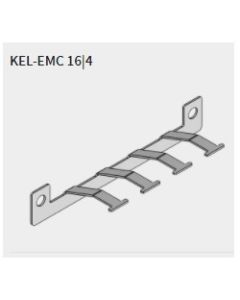

36524 | KEL-EMC 16\4 | Cable Assembly BracketKEL-EMC 16\4 Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 115mm

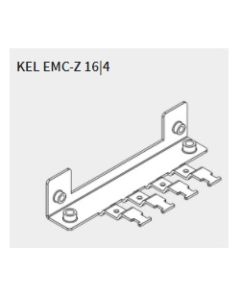

36525 | KEL-EMC-Z 16\4 | Cable Assembly BracketKEL-EMC-Z 16\4 Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 120mm

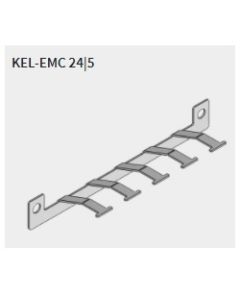

36526 | KEL-EMC 24\5 | Cable Assembly BracketKEL-EMC 24\5 Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 142mm

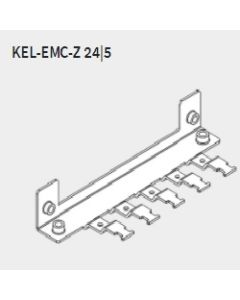

36527 | KEL-EMC-Z 24\5 | Cable Assembly BracketKEL-EMC-Z 24\5 Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 147mm

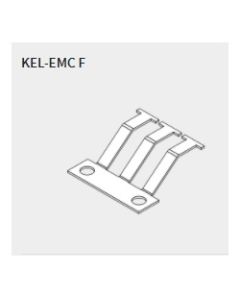

39110 | KEL-EMC F | Cable Assembly BracketKEL-EMC F Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 41mm
