N Type Adaptors

N Type Connectors

N Type are a rugged screw coupled, mid sized series of connectors
With versions available for use up to 11 GHz (50 ohm) / 3 GHz (75 ohm).
N Type connector interface is according to Mil 30912 and are sealed to IP67 when mated
50 ohm and 75 ohm versions of N Type are available

Note : 50 and 75 Ohm version of N Type connectors are not compatible and permanent damage to the connector may occur if mated.

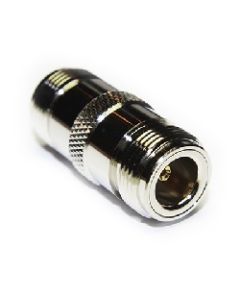

25-500-B3 | 25500B3 | N Type Straight Jack to Jack Adaptor
N Type 50 ohm straight jack to jack adaptor. This adaptor has a gold plated centre conductor and nickel plated body.

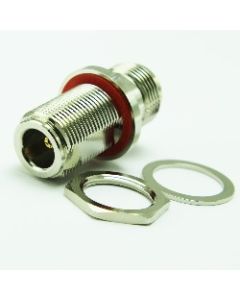

25-501-1-B3 | 255011B3 | Bulkhead Jack to Jack Adaptor
N Type 50 ohm straight jack to jack bulkhead mount adaptor. Double flat on the body for DD hole fixing. Gold plated centre conductor with nickel plated body.

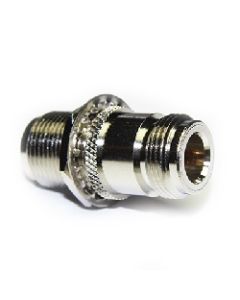

25-501-B3 | 25501B3 | Bulkhead Jack to Jack Adaptor
N Type 50 ohm straight jack to jack bulkhead mount adaptor. Single flat on the body for D hole fixing. Gold plated centre conductor with nickel plated body.

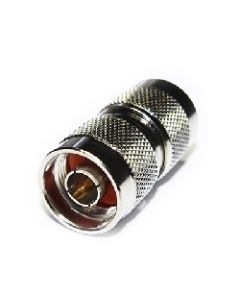

25-514-B3 | 25514B3 | N Type Straight Plug to Plug Adaptor
N Type 50 ohm straight plug to plug adaptor. This adaptor has a gold plated centre conductor and nickel plated body.

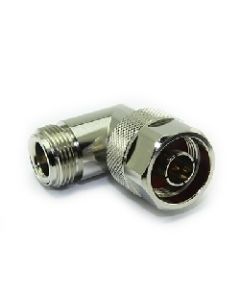

25-520-1-B3 | 255201B3 | N Type Right Angle Plug to Jack
N Type 50 ohm right angle plug to jack adaptor. This adaptor has a gold plated centre contact and nickel plated body.

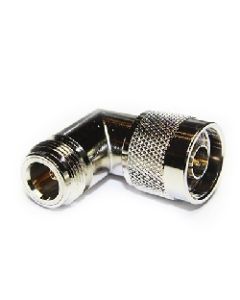

25-520-B3 | 25520B3 | N Type Right Angle Plug to Jack
N Type 50 ohm right angle plug to jack adaptor. This adaptor has a gold plated centre contact and nickel plated body.
25-520-H3 | 25520H3 | N Type Right Angle Plug to Jack
N Type 50 ohm right angle plug to jack adaptor is optimised for operation up to 18GHz. The body is passivated stainless steel, centre contact is gold plated.

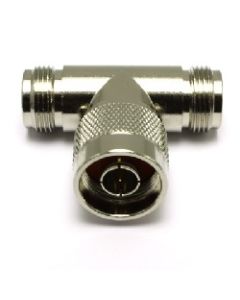

25-523-A3 | 25523A3 | N Type "T" Adaptor
N Type 50 ohm "T" adaptor. Arrangement is Jack / Plug / Jack. This adaptor has a gold plated centre contact and nickel plated body.

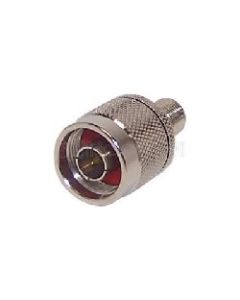

74-1525-534 | 741525534 | F Type Jack to N Type Plug
Inter-Series adaptor for connection between different connector series. F Type Jack to N Type Plug Straight Adaptor
