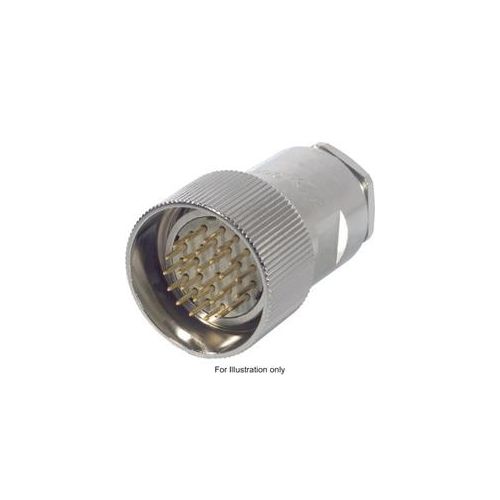

00009045 | Lapp Epic® Circular Connector | R 3.0 D PG16
Lapp Epic® Male Circular Cable Connector with Solder Termination, Number of Contacts: 1-21
| Complete Electronics Part No. | 9045 |
|---|---|
| Manufacturers Part No. | 9045 |
| Type: | Cable Plug |
| Lapp Circular Range: | R3.0 D PG16 |
| Number of poles | 1 - 21 |
| Male/Female: | Male |
| Termination: | Solder |
| Mounting: | Cable |
| Clamping Range | 6.5-16mm |
Description
Part Number 00009045
Lapp Epic® Male Circular Cable Connector with Solder Termination
- Number of Contacts: 1-21
- E-Part
- Rated Voltage: 24V AC / 60V DC
- Rated Current: 7.5 A
- Contact Material: Copper Alloy, Gold Plated
- Termination: Solder
- Housing:Nickel Plated Copper Alloy
- Insert: Thermoplastic
- Ingress Protection: IP67
- Temperature Range: -40°C to +100deg;C, Short Term up to +125deg;C
- Cable Clamping Range: 6.5 - 16.0mm
- Compact and reliable connector for multicore signal cables
