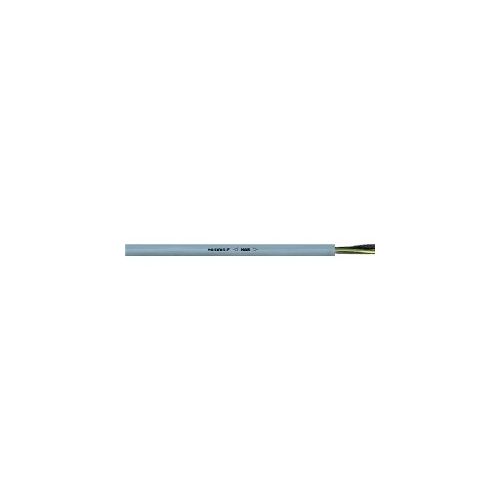

0011018 | OLFLEX 140 H05VV5-F 3G1 | PVC Control Cable
Lapp OLFLEX Harmonised PVC Control Cable, Number of Cores and Core Size: 3 G 1², High oil-resistance
| Complete Electronics Part No. | 11018 |
|---|---|
| Manufacturers Part No. | 11018 |
Description
OLFLEX 140 H05VV5-F 3G1
Lapp OLFLEX Harmonised PVC Control Cable
- Harmonised PVC Control Cable
- Number of Cores and Core Size: 3 G 1²
- Fine-wire strand made of bare copper wires
- PVC core insulation
- Cores twisted in layers
- PVC outer sheath
- High oil-resistance
- Flame-retardant according IEC 60332-1-2
- Fixed installation Temp range: -40°C to +70°C
- Occasional flexing temp Range: -5°C to +70°C
- Core ID: Black with white numbers acc. to VDE 0293-1
- High acceptance in Europe due to Harmonisation
- Sheath Colour: Grey (similar to RAL 7001)
- Cable Outer Diameter: 6.3 - 8mm
- Reel Length: 50M
