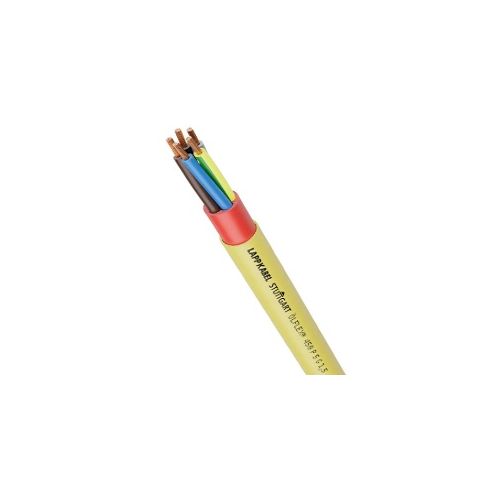

0012102 | OLFLEX 450 P 3G1 | Harsh Conditions Cable
Abrasion- and notch-resistant cable with wear indicator, For use with handheld equipment, Number of Conductors: 3, Conductor Diameter: 1.0mm²
| Complete Electronics Part No. | 0012102 |
|---|---|
| Manufacturers Part No. | 0012102 |
| Series: | OLFLEX 450 P |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | For hand held equipment |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Length: | 100 Metres |
Description
00122102 | ÖLFLEX® 450 P Cable, 3G1
Abrasion- and notch-resistant cable with wear indicator
For use with handheld equipment
Number of Conductors: 3
Conductor Diameter: 1.0mm²
Cable Outer Diameter: 8.4mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC)
Core identification: Colours to VDE 0293-308
Inner Sheath material: Polyvinylchloride (PVC)
Inner sheath colour: Red
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Yellow (RAL 1016)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyvinylchloride (PVC)
Core identification: Colours to VDE 0293-308
Inner Sheath material: Polyvinylchloride (PVC)
Inner sheath colour: Red
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Yellow (RAL 1016)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 3kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C
Current rating according to VDE 0298-4
Test Voltage: 3kV
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - No
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - No
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Suitable as a flexible power or extension cable for portable hand-held electrical devices.
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Outer sheath PUR material is resistant to abrasions, notches and cuts.
Flexible use at temperatures down to -40°C
Suitable for outdoor use, subject to the temperature range
Cable wear can be detected directly: if severe mechanical damage has occurred, the red inner sheath is visible
CE marked, EAC certified
Flexible use at temperatures down to -40°C
Suitable for outdoor use, subject to the temperature range
Cable wear can be detected directly: if severe mechanical damage has occurred, the red inner sheath is visible
CE marked, EAC certified
Reel Length= 100M
Lapp part number: 0012102
