00123473 | OLFLEX 500 P 4G1 | Harsh Conditions Cable
Oil- and cold-resistant workshop cable, Highly flexible conductors, Number of Conductors: 4, Conductor Diameter: 1.0mm², With GN/YE Protective conductor
| Complete Electronics Part No. | 00123473 |
|---|---|
| Manufacturers Part No. | 00123473 |
| Series: | OLFLEX 550 P |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description

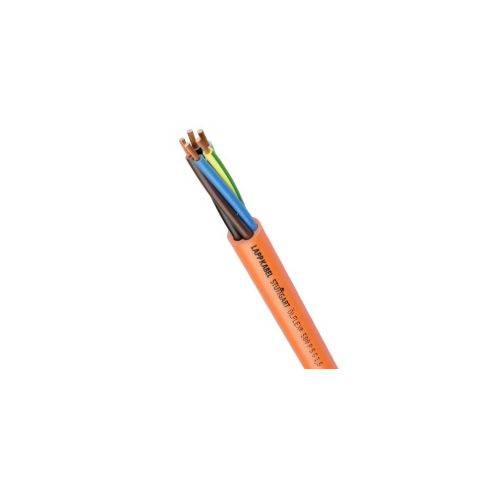

00123473 | ÖLFLEX® 500 P Cable, 4G1
Oil- and cold-resistant workshop cable
Highly flexible conductors
Number of Conductors: 4
Conductor Diameter: 1.0mm²
Cable Outer Diameter: 8.5mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6:-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: Colours to VDE 0293-308
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Orange (RAL 2003)
Conductor design: IEC 60228 class 6:-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: Colours to VDE 0293-308
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Orange (RAL 2003)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 3kV
Temperature, fixed installation: -50°C to 80°C
Temperature, occasionally moved: -40°C to 80°C
Current rating according to VDE 0298-4
Test Voltage: 3kV
Temperature, fixed installation: -50°C to 80°C
Temperature, occasionally moved: -40°C to 80°C
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - Yes
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - Yes EN 50525-2-2, up to 10 metres
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A / EN 50618 / EN 50620
Weather resistant - Yes
Water resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - Yes
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - Yes EN 50525-2-2, up to 10 metres
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A / EN 50618 / EN 50620
Weather resistant - Yes
Water resistant - Yes
Typical areas of application are drills, grinders, splicing saws, separating pumps and submersible pumps
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Can be used in dry, wet and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Outer sheath PU material is resistant to abrasions, notches and cuts.
Suitable for outdoor use
Flexible use at temperatures down to -40°C
For fixed installation and occasional flexing
Suitable for outdoor use
Flexible use at temperatures down to -40°C
For fixed installation and occasional flexing
CE marked, EAC certified
Reel Length= 100M
Lapp part number: 00123473
