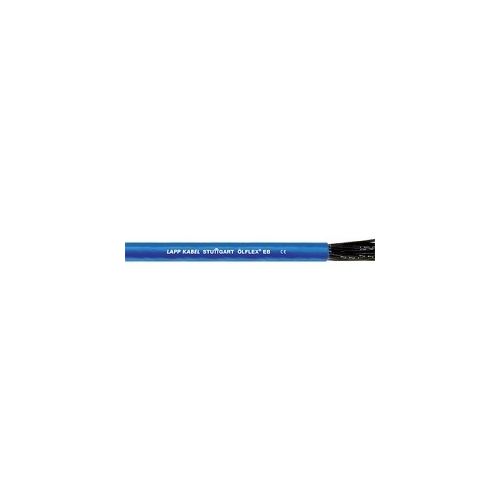

0012420 | OLFLEX EB 2X0,75 | PVC Control Cable
0012420, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
| Complete Electronics Part No. | 12420 |
|---|---|
| Manufacturers Part No. | 12420 |
| Number of Conductors: | 2 |
| Conductor Size: | 0.75mm² |
Description
OLFLEX EB 2X0,75
Control cable for intrinsically safe circuits
- PVC control cable, flexible and numbered, with blue outer sheath
- Nominal Voltage 300/500 V
- without protective conductor
- Outer Cable Diameter 5.4mm
- Outer sheath: PVC, sky blue similar to RAL 5015
- Core ID: Black with white numbers acc. to VDE 0293-1
- Fine-wire strand made of bare copper wires
- Flame-retardant according IEC 60332-1-2
- Occasional flexing temperature range: -5°C to +70°C
- Fixed installation temperature range: -40°C to +80°C
- Reel Length 50 Metres
