0012501 | OLFLEX EB 3G1,5 | PVC Control Cable
0012501, Control cable for intrinsically safe circuits, PVC control cable, flexible and numbered, with blue outer sheath
| Complete Electronics Part No. | 12501 |
|---|---|
| Manufacturers Part No. | 12501 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Male |
| Coded Option (Circular) | B |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Cable Length: | 5 Metres |
Description

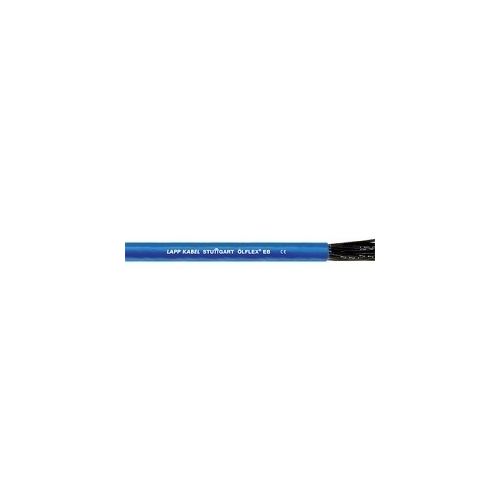

OLFLEX EB 3G1,5
Control cable for intrinsically safe circuits
- PVC control cable, flexible and numbered, with blue outer sheath
- Nominal Voltage 300/500 V
- with GN-YE protective conductor
- Outer Cable Diameter 6.7mm
- Outer sheath: PVC, sky blue similar to RAL 5015
- Core ID: Black with white numbers acc. to VDE 0293-1
- Fine-wire strand made of bare copper wires
- Flame-retardant according IEC 60332-1-2
- Occasional flexing temperature range: -5°C to +70°C
- Fixed installation temperature range: -40°C to +80°C
- Reel Length 50 Metres
