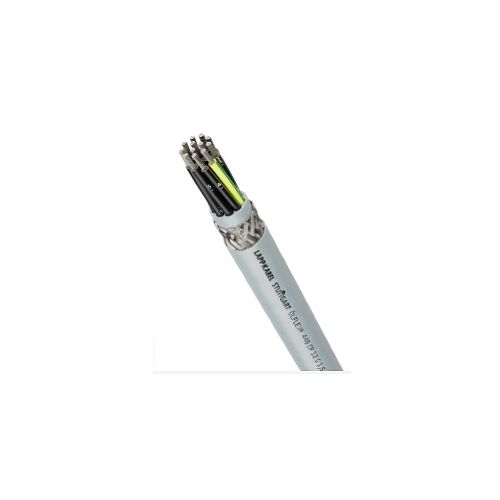

0012911 | OLFLEX 440 CP 2X0,75 | Harsh Conditions Cable
Screened abrasion- and oil-resistant cable, Conductors: 2, Conductor Diameter: 0.75mm², Cable Outer Diameter: 8.4mm, Without GN/YE Protective conductor
| Complete Electronics Part No. | 0012911 |
|---|---|
| Manufacturers Part No. | 0012911 |
| Series: | OLFLEX 440 CP |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description
0012911 | ÖLFLEX® 440 CP Cable, 2X0.75
Shielded PUR / TPE Power and Control Cable
Number of Conductors: 2
Conductor Diameter: 0.75mm²
Cable Outer Diameter: 8.4mm
Without Protective Conductor
Conductor material: Tin Plated Copper
Screen material: Tin plated copper braiding, coverage = 85% (nominal value)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: White numbers on black (EN 50334, VDE 0293-1)
Inner Sheath material: Thermoplastic elastomers (TPE)
Inner sheath colour: Grey
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL 7001)
Screen material: Tin plated copper braiding, coverage = 85% (nominal value)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: White numbers on black (EN 50334, VDE 0293-1)
Inner Sheath material: Thermoplastic elastomers (TPE)
Inner sheath colour: Grey
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey (RAL 7001)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 3kV
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Current rating according to VDE 0298-4
Test Voltage: 3kV
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - Yes acc. to IEC 61892-4
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - Yes up to 10 metres @ 40°C
PWIS-free - Yes acc. to VDMA 24364-B2-L
Resistant to oil and drilling fluids
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - Yes acc. to IEC 61892-4
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - Yes up to 10 metres @ 40°C
PWIS-free - Yes acc. to VDMA 24364-B2-L
Resistant to oil and drilling fluids
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - Yes acc. to IEC 61892-4
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - Yes up to 10 metres @ 40°C
PWIS-free - Yes acc. to VDMA 24364-B2-L
Resistant to oil and drilling fluids
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
MUD resistant - Yes acc. to IEC 61892-4
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - Yes up to 10 metres @ 40°C
PWIS-free - Yes acc. to VDMA 24364-B2-L
Resistant to oil and drilling fluids
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Outer sheath PUR material is resistant to abrasions, notches and cuts
Low-capacitance core insulation for long transmission paths
Flexible use at temperatures down to -40°C
Suitable for outdoor use, subject to the temperature range
Classified fire behaviour according to EU Directive 305/2011
CE marked, EAC certified, VDE certified
Low-capacitance core insulation for long transmission paths
Flexible use at temperatures down to -40°C
Suitable for outdoor use, subject to the temperature range
Classified fire behaviour according to EU Directive 305/2011
CE marked, EAC certified, VDE certified
Reel Length= 100M
Lapp part number: 0012911
