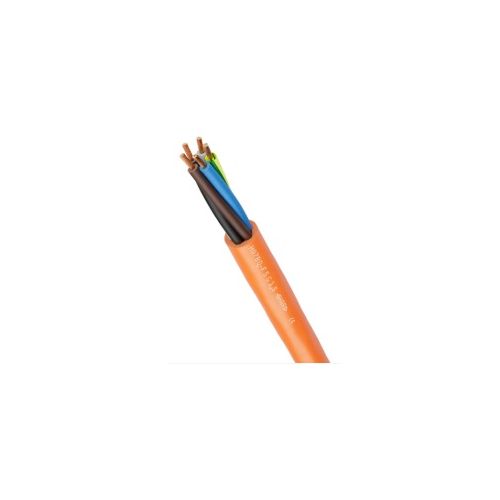

00136023 | OLFLEX 550 P 4G0,75 | Harsh Conditions Cable
Power cord with PUR outer sheath, Harmonized according to H05BQ-F / H07BQ-F, Conductors: 4, Conductor Diameter: 0.75mm², With GN/YE Protective conductor
| Complete Electronics Part No. | 00136023 |
|---|---|
| Manufacturers Part No. | 00136023 |
| Series: | OLFLEX 550 P |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Power Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description
00136023 | H05BQ-F / H07BQ-F Cable, 4G0.75
Multi Core PUR Power and Control Cable
Number of Conductors: 4
Conductor Diameter: 0.75mm²
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Ethylene propylene diene rubber (EPDM)
Core identification: Colour-coded acc. to VDE 0293-308
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Orange (RAL 2003)
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Ethylene propylene diene rubber (EPDM)
Core identification: Colour-coded acc. to VDE 0293-308
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Orange (RAL 2003)
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 3kV
Max. conductor resistance at 20°C: 7.98 Ω/km
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 60°C
Current rating according to VDE 0298-4
Test Voltage: 3kV
Max. conductor resistance at 20°C: 7.98 Ω/km
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 60°C
Chemical resistant - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Weather resistant - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to EN 50363-10-2
Permanently immersible in water - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Weather resistant - Yes
Typical fields of application include building sites, camping, event technology, agriculture, etc.
For fixed installation and occasional flexing without tensile strain
Can be used in dry, damp and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
For fixed installation and occasional flexing without tensile strain
Can be used in dry, damp and, especially, harsh and oily environments
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Suitable for outdoor use
Flexible use at temperatures down to -40°C
Harmonized according to H05BQ-F / H07BQ-F with the ◁HAR▷ testing mark
Outer sheath with orange signal colour for rapid visual perception
Power cable for construction machinery and mobile electrical handheld devices
CE marked, EAC certified, HAR-certified
Flexible use at temperatures down to -40°C
Harmonized according to H05BQ-F / H07BQ-F with the ◁HAR▷ testing mark
Outer sheath with orange signal colour for rapid visual perception
Power cable for construction machinery and mobile electrical handheld devices
CE marked, EAC certified, HAR-certified
Reel Length= 100M
Lapp part number: 00136023
