0014150 | OLFLEX CLASSIC 100 H 2X1,5mm² | Halogen Free

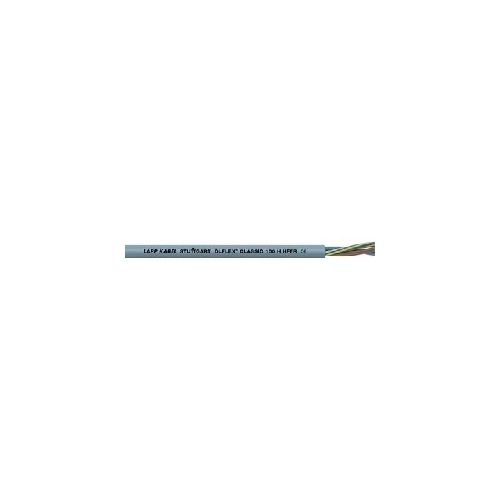

LAPP OLFLEX CLASSIC 100 H 2 Core, 1.5mm² Halogen Free, Fire Retardant Flexible Cable
| Complete Electronics Part No. | 0014150 |
|---|---|
| Manufacturers Part No. | 0014150 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
Description
LAPP OLFLEX CLASSIC 100 H 2X1,5
Halogen free fire retardant flexible cable
- 2 Core
- Core Diameter: 1.5mm²
- Cable Outer Diameter: 7.6mm
- Without protective conductor
- Flame-retardant according to IEC 60332-1-2
- Halogen-free according to IEC 60754-1
- Oil-resistant according to EN 50363-4-1 (TM5)
- Ozone-resistant according to EN 50396
- Core ID: Colours according to VDE 0293-308
- Bend Radius: Occasional flexing: 15 x outer diameter
- Bend Radius: Fixed installation: 4 x outer diameter
- Core insulation: Halogen-free
- Outer sheath: Special halogen-free compound
- Outer Sheath colour: Grey (similar to RAL 7001
- Nominal Voltage: 450/750 Vac
- Reel Length: 100M
