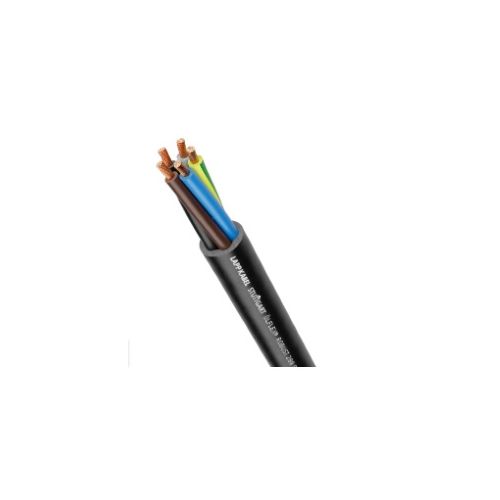

0021822 | OLFLEX ROBUST 200 4G6 | Harsh Conditions Cable
All-weather connection cable, Resistant against a variety of chemicals, Number of Conductors: 4, Conductor cross section: 6.0mm²
| Complete Electronics Part No. | 0021822 |
|---|---|
| Manufacturers Part No. | 0021822 |
| Series: | OLFLEX ROBUST 200 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 6.0mm² |
| Rated Voltage: | 450 / 750 V |
| Cable Type: | Control Cable - Chemical Resistant |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | TPE |
| Cable Length: | 50 Metres |
Description
0021822 | ÖLFLEX® ROBUST 200 4G6
Unshielded Polypropylene / TPE Power and Control Cable
Product Design
For connecting devices and machines to a power supply in various applications
For fixed installation and occasional movement without tensile strain
Number of Conductors: 4 Including protective conductor
Conductor cross section: 6mm²
Cable Outer Diameter: 15.7mm
Number of Conductors: 4 Including protective conductor
Conductor cross section: 6mm²
Cable Outer Diameter: 15.7mm
Core identification Colours VDE 0293-308
Temperature, fixed installation: -50°C to 80°C
Temperature, occasionally moved: -40°C to 80°C
Weight: 378 kg/km
With GN-YE Protective Conductor
Temperature, fixed installation: -50°C to 80°C
Temperature, occasionally moved: -40°C to 80°C
Weight: 378 kg/km
With GN-YE Protective Conductor
Electrical Parameters
Conductor material: Bare Copper
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polypropylene
Core identification: Numbers to EN 50334 / VDE 0293-1
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polypropylene
Core identification: Numbers to EN 50334 / VDE 0293-1
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Product Features
Chemical resistant - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
PWIS-free - No
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Permanently immersible in water - Yes, According to EN 50525-2-21(Up to 10 metres @40°C)
Weather resistant - Yes
Low capacitance - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
PWIS-free - No
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Permanently immersible in water - Yes, According to EN 50525-2-21(Up to 10 metres @40°C)
Weather resistant - Yes
Low capacitance - Yes
General Information
Particularly weather-resistant and durable all-weather cable
Can be used in dry, damp and, especially, harsh and oily environments
Tested resistance to ECOLAB® disinfectants and cleaning agents
Can be used in dry, damp and, especially, harsh and oily environments
Tested resistance to ECOLAB® disinfectants and cleaning agents
Suitable for outdoor use.
Flexible use at temperatures down to -40°C
Flexible use at temperatures down to -40°C
Suitable for applications with UV-C radiation
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
Resistant to hot water and steam when subjected to frequent steam jet cleaning.
CE marked, Ecolab certified
CE marked, Ecolab certified
Lapp part number: 0021822
Reel Length: 50m
Reel Length: 50m
