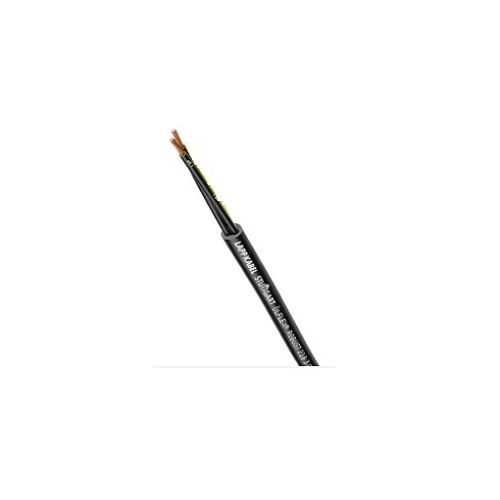

0021930 | OLFLEX ROBUST 210 3X1,5 | Harsh Conditions Cable
All-weather connection cable, Resistant against a variety of chemicals, Number of Conductors: 3, Conductor cross section: 1.5mm²
| Complete Electronics Part No. | 0021930 |
|---|---|
| Manufacturers Part No. | 0021930 |
| Series: | OLFLEX ROBUST 210 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable - Chemical Resistant |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | TPE |
| Cable Length: | 100 Metres |
Description
0021930 | ÖLFLEX® ROBUST 210 3X1.5
Unshielded Polypropylene / TPE Power and Control Cable
Product Design
For universal use for wiring machine-internal and cross-plant control circuits
Number of Conductors: 3
For fixed installation and occasional movement without tensile strain
Conductor cross section: 1.5mm²
Cable Outer Diameter: 6.2mm
Temperature, fixed installation: -50°C to 80°C
Temperature, occasionally moved: -40°C to 80°C
Weight: 72 kg/km
Without GN-YE Protective Conductor
Number of Conductors: 3
For fixed installation and occasional movement without tensile strain
Conductor cross section: 1.5mm²
Cable Outer Diameter: 6.2mm
Temperature, fixed installation: -50°C to 80°C
Temperature, occasionally moved: -40°C to 80°C
Weight: 72 kg/km
Without GN-YE Protective Conductor
Electrical Parameters
Conductor material: Bare Copper
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polypropylene
Core identification: Numbers to EN 50334 / VDE 0293-1
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polypropylene
Core identification: Numbers to EN 50334 / VDE 0293-1
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Product Features
Chemical resistant - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
PWIS-free - No
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Permanently immersible in water - Yes, According to EN 50525-2-21(Up to 10 metres)
Weather resistant - Yes
Low capacitance - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
PWIS-free - No
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Permanently immersible in water - Yes, According to EN 50525-2-21(Up to 10 metres)
Weather resistant - Yes
Low capacitance - Yes
General Information
For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, damp and, especially, harsh and oily environments
Tested resistance to ECOLAB® disinfectants and cleaning agents
Flexible use at temperatures down to -40°C
Can be used in dry, damp and, especially, harsh and oily environments
Tested resistance to ECOLAB® disinfectants and cleaning agents
Flexible use at temperatures down to -40°C
Suitable for applications with UV-C radiation
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, Ecolab certified
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
CE marked, EAC certified, Ecolab certified
Lapp part number: 0021930
Reel Length: 100m
Reel Length: 100m
