0022780 | OLFLEX ROBUST 215 C 4G35 | Harsh Conditions Cable
Screened All-weather connection cable, Resistant against a variety of chemicals, Number of Conductors: 4, Conductor Diameter: 35.0mm²
| Complete Electronics Part No. | 0022780 |
|---|---|
| Manufacturers Part No. | 0022780 |
| Series: | OLFLEX ROBUST 215 C |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 35mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable - Chemical Resistant |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | TPE |
| Cable Length: | 300 Metres |
Description

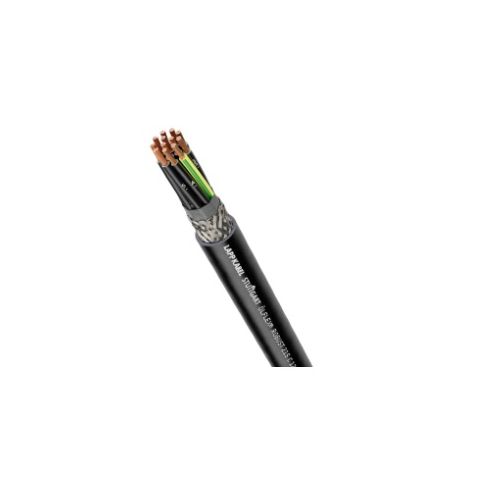

0022780 | ÖLFLEX® ROBUST 215 C 4G35
Shielded Polypropylene / TPE Power and Control Cable
For universal use for wiring machine-internal and cross-plant control circuits.
Number of Conductors: X Including protective conductor
Shielded with Tin-plated copper braiding, Halogen-free plastic film
Conductor Diameter: 35 mm²
Cable Outer Diameter: 27.8 mm
Temperature, fixed installation: -50 °C to 80 °C
Temperature, occasionally moved: -40 °C to 80 °C
Weight: 1883 kg/km
With GN-YE Protective Conductor
Number of Conductors: X Including protective conductor
Shielded with Tin-plated copper braiding, Halogen-free plastic film
Conductor Diameter: 35 mm²
Cable Outer Diameter: 27.8 mm
Temperature, fixed installation: -50 °C to 80 °C
Temperature, occasionally moved: -40 °C to 80 °C
Weight: 1883 kg/km
With GN-YE Protective Conductor
Conductor material: Bare Copper
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Modified Polypropylene
Core identification: Numbers to EN 50334 / VDE 0293-1
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Modified Polypropylene
Core identification: Numbers to EN 50334 / VDE 0293-1
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Chemical resistant - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
PWIS-free - No
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Permanently immersible in water - Yes, According to EN 50525-2-21
Weather resistant - Yes
Halogen Free - Yes
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
PWIS-free - No
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Permanently immersible in water - Yes, According to EN 50525-2-21
Weather resistant - Yes
For universal use for wiring machine-internal and cross-plant control circuits
Can be used in dry, damp and, especially, harsh and oily environments
For environments where electromagnetic compatibility (EMC) is required.
TPE outer sheath is highly chemical resistant and highly oil resistant
Can be used in dry, damp and, especially, harsh and oily environments
For environments where electromagnetic compatibility (EMC) is required.
TPE outer sheath is highly chemical resistant and highly oil resistant
Suitable for use in conjunction with water-soluble cleaning agents and coolants.
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional flexing without tensile strain
Flexible use at temperatures down to -40°C.
CE marked, EAC certified, Ecolab certified
CE marked, EAC certified, Ecolab certified
Lapp part number: 0022780
Reel Length: 300m
Reel Length: 300m
