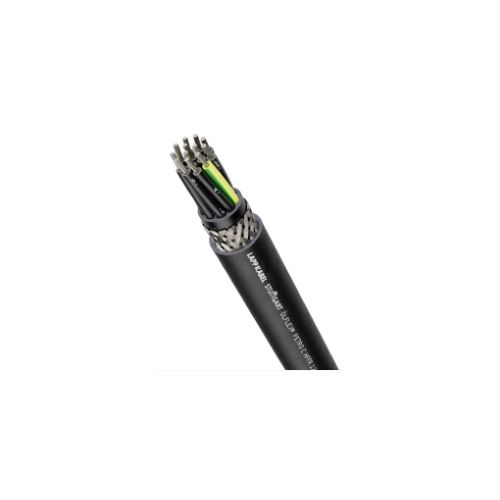

0023245 | OLFLEX PETRO C HFFR 7G2,5 BK | Harsh Conditions Cable
Screened power and control cable, Chemically and mechanically robust, Number of Conductors: 7, Conductor cross section: 2.5mm²
| Complete Electronics Part No. | 0023245 |
|---|---|
| Manufacturers Part No. | 0023245 |
| Series: | OLFLEX PETRO C HFFR |
| Number of Conductors: | 7 |
| Conductor Cross Section: | 2.5mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Control Cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | Robust Special Polymer |
| Cable Length: | 50 Metres |
Description
0023245 | ÖLFLEX® PETRO C HFFR 7G2.5 BK
Shielded Polyolefin / Polyurethane Power and Control Cable
Product Design
For use in offshore applications involving contact with seawater
Also suitable for the wet area of industrial and machine tools as well as transfer lines
Especially for environments where electromagnetic compatibility (EMC) is required
Withstands high mechanical stress
Number of Conductors: 7 Including protective conductor
Conductor cross section: 2.5mm²
Cable Outer Diameter: 18.3mm
Conductor cross section: 2.5mm²
Cable Outer Diameter: 18.3mm
Weight: 547 kg/km
Temperature, fixed installation: 50°C to 90°C according to IEC,
Temperature, occasionally moved: -40°C to 90°C
With GN-YE Protective Conductor
Temperature, fixed installation: 50°C to 90°C according to IEC,
Temperature, occasionally moved: -40°C to 90°C
With GN-YE Protective Conductor
Electrical / Insulation Parameters
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Operating voltage of 1000 V according to UL, permitted for North America
Current rating according to VDE 0298-4
Conductor material: Tin Plated Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyolefin
Core identification: Numbers to EN 50334 / VDE 0293-1
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Polyolefin
Core identification: Numbers to EN 50334 / VDE 0293-1
Type of overall screen: Tin-plated copper braiding with a high degree of coverage
Basic material of inner sheath: Halogen-free compound (HFFR)
Colour of inner sheath: Black
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Black (RAL9005)
Outer sheath colour: Black (RAL9005)
Product Features
Chemical resistant - Yes
Flame retardant - Yes
Halogen Free - Yes - VDE 0472-815
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
PWIS-free - Yes
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
Flame retardant - Yes
Halogen Free - Yes - VDE 0472-815
Hydrolysis resistant - Yes
Low-adhesion sheath surface - No
Oil-resistant - Yes acc. to EN 50363-10-2
PWIS-free - Yes
UV-resistant - Yes acc. to EN ISO 4892-2, method A
Water resistant - Yes
MUD resistance - Yes according to acc. to IEC 61892-4, NEK TS 606:2016
Salt water resistance - Yes according to UL 1309
Weather resistant - Yes
General Information
Particularly weather-resistant and durable all-weather cable
For use in offshore applications involving contact with seawater
Particularly resistant to oil and drilling fluids and therefore ideal for harsh environments
Particularly resistant to oil and drilling fluids and therefore ideal for harsh environments
Especially for environments where electromagnetic compatibility (EMC) is required
Suitable for outdoor use
Flexible use at temperatures down to -40°C
Flexible use at temperatures down to -40°C
Particularly resistant to oil and drilling fluids and therefore ideal for harsh environments
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional movement
For fixed installation and occasional movement
The HFFR outer sheath is highly resistant to acids and alkalis.
CE marked, EAC-certified, UL recognised, cUR recognized
Lapp part number: 0023245
Reel Length: 50m
Reel Length: 50m
