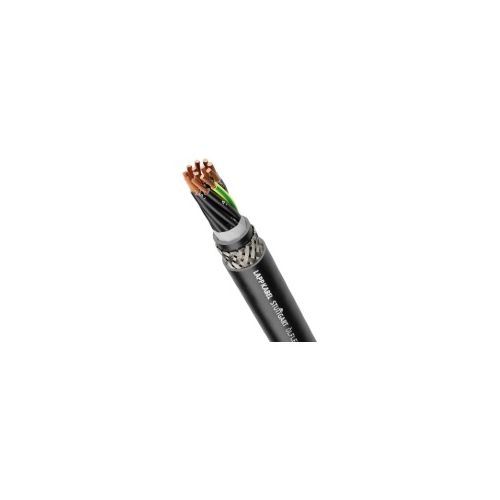

0023304 | OLFLEX PETRO FD 865 CP 7G0,5 | Harsh Conditions Cable
Highly flexible, screened power and control cable, Number of Conductors: 7, Conductor Cross section: 0.5mm², Outer Diameter: 9.5mm, With GN-YE conductor
| Complete Electronics Part No. | 0023304 |
|---|---|
| Manufacturers Part No. | 0023304 |
| Series: | OLFLEX PETRO FD 865 CP |
| Number of Conductors: | 7 |
| Conductor Size: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | Robust Special Polymer |
| Cable Length: | 100 Metres |
Description
0023304 | OLFLEX PETRO FD 865 CP 7G0.5
Highly flexible, Screened multi core power & control cable
Number of Conductors: 7
Conductor Cross section: 0.5mm²
Cable Outer Diameter: 9.5mm
With GN-YE protective conductor
Conductor material: Bare Copper
Type of overall screen: Tin-plated copper braiding
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: Yes
Type of overall screen: Tin-plated copper braiding
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: Yes
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Temperature Range Fixed Install: -60°C to +80°C
Temperature Range Flexing: -50°C to +80°C
Cable specially developed for maritime use with international DNV approval
For use in offshore applications involving contact with seawater
Can be used in dry, wet and especially in harsh and oily environments
Extremely weather-resistant with a wide temperature range
Ideal protection against electromagnetic interference
For use in offshore applications involving contact with seawater
Can be used in dry, wet and especially in harsh and oily environments
Extremely weather-resistant with a wide temperature range
Ideal protection against electromagnetic interference
Resistant to oil and ester-based drilling emulsions and calcium bromide solutions (resistant to oil and MUD)
Suitable for outdoor use
Flexible use at temperatures down to -40°C
CE marked, UKCA marked, EAC certified
Suitable for outdoor use
Flexible use at temperatures down to -40°C
CE marked, UKCA marked, EAC certified
Cable Length: 100M
Lapp part number: 0023304
