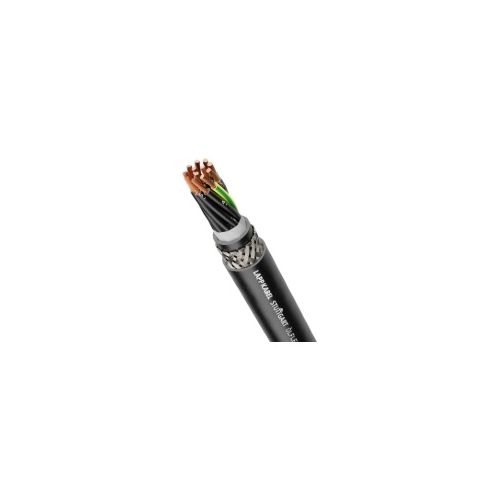

0023324 | OLFLEX PETRO FD 865 CP 4 G 1 | Harsh Conditions Cable
Highly flexible, screened power and control cable, Number of Conductors: 4, Conductor Cross section: 1.0mm², Cable OD: 8.8mm, With GN-YE conductor
| Complete Electronics Part No. | 0023324 |
|---|---|
| Manufacturers Part No. | 0023324 |
| Series: | OLFLEX PETRO FD 865 CP |
| Number of Conductors: | 4 |
| Conductor Size: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | Robust Special Polymer |
| Cable Length: | 100 Metres |
Description
0023324 | OLFLEX PETRO FD 865 CP 4G1
Highly flexible, Screened multi core power cable
Number of Conductors: 4
Conductor Cross section: 1.0mm²
Cable Outer Diameter: 8.8mm
With GN-YE protective conductor
Conductor material: Bare Copper
Type of overall screen: Tin-plated copper braiding
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: Yes
Type of overall screen: Tin-plated copper braiding
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: Yes
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Temperature Range Fixed Install: -60°C to +80°C
Temperature Range Flexing: -50°C to +80°C
Cable Length: 100M
Lapp part number: 0023324
