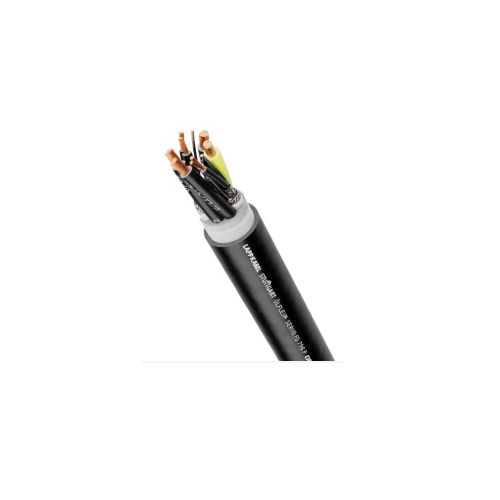

0025326 | OLFLEX SERVO FD 796P 4G0,75 +2X(2X0,34) | Power Chain Cable
Servo cable with PUR outer sheath, Number of Conductors: 4G0.75 + 2 x (2 x 0.34mm²), Conductor Cross section: 0.75mm², Cable Outer Diameter: 10.9mm
| Complete Electronics Part No. | 0025326 |
|---|---|
| Manufacturers Part No. | 0025326 |
| Number of Conductors: | 8 |
| Conductor Cross Section: | 0.75mm² |
| Power Chain Series | OLFLEX Servo FD 796 P |
| Cable Length: | 100 Metres |
Description
0025326 | ÖLFLEX® SERVO FD 796 P, 4G0,75 +2X(2X0,34)
Flexible and shielded control core pairs
Number of Conductors: 4 + 2 x (2 x 0.34mm²)
Conductor Cross section: 0.75mm²
Cable Outer Diameter: 10.9mm
With GN/YE Protective conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polypropylene (PP)
Control core screen: Aluminium-laminated plastic foil, Tin-plated copper braiding
Core identification: Alphanumeric, Numbers
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polypropylene (PP)
Control core screen: Aluminium-laminated plastic foil, Tin-plated copper braiding
Core identification: Alphanumeric, Numbers
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Nominal voltage Control Cores: U0/U: 0,6/1 kV AC rms according to IEC
Nominal voltage Power Cores:U0/U: 0,6/1 kV AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Temperature, dynamic continuously flexing: -40°C to 90°C
Maximum bending cycles: 10,000,000
Nominal voltage Control Cores: U0/U: 0,6/1 kV AC rms according to IEC
Nominal voltage Power Cores:U0/U: 0,6/1 kV AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 90°C
Temperature, occasionally moved: -40°C to 90°C
Temperature, dynamic continuously flexing: -40°C to 90°C
Maximum bending cycles: 10,000,000
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes (IEC 60754-1)
Hydrolysis resistant: - Yes
Low-adhesion sheath surface - Yes
MUD resistance - Yes (IEC 61892-4)
Oil-resistant - Yes (EN 50363-10-2)
Ozone resistant: - Yes (EN 50396, method B)
PWIS-free - Yes
UV-resistant - Yes
Water resistant: - Yes
Weather resistant: - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes (IEC 60754-1)
Hydrolysis resistant: - Yes
Low-adhesion sheath surface - Yes
MUD resistance - Yes (IEC 61892-4)
Oil-resistant - Yes (EN 50363-10-2)
Ozone resistant: - Yes (EN 50396, method B)
PWIS-free - Yes
UV-resistant - Yes
Water resistant: - Yes
Weather resistant: - Yes
The cable design allows flexible, continuously flexing use
Durable cable chain use with long travel distances or high acceleration
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Can be used in dry, wet and especially in harsh and oily environments
Durable cable chain use with long travel distances or high acceleration
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Can be used in dry, wet and especially in harsh and oily environments
Ideal protection against electromagnetic interference thanks to copper screening braiding (Control Cores)
Braiding coverage = 85% (nominal value)
Suitable for outdoor use
For connecting frequency converters and servo motors
Compatible with servo drives from leading manufacturers
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognized
Braiding coverage = 85% (nominal value)
Suitable for outdoor use
For connecting frequency converters and servo motors
Compatible with servo drives from leading manufacturers
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognized
Cable Length: 50M
Lapp part number: 0025326
