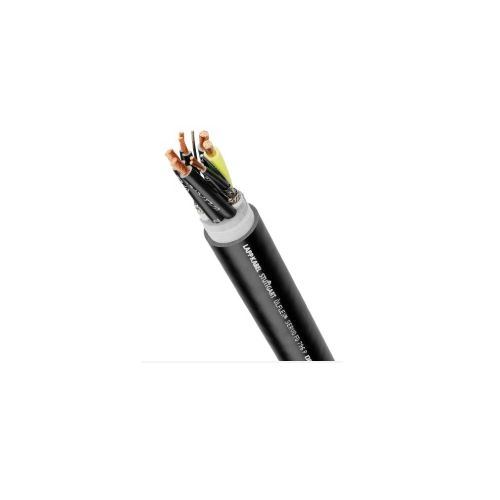

0025327 | Olflex FD796P 4G 1,5+2x2x0,75 | Lapp Cable

Servo cable with PUR outer sheath, Number of Conductors: 4 + 2 x (2 x 0.75mm²), Conductor Cross section: 1.5mm², Cable Outer Diameter: 12.3mm
More Information
Complete Electronics Part No. 0025327
Manufacturers Part No. 0025327
Power Chain Series OLFLEX Servo FD 796 P
Description

OLFLEX SERVO FD 796P 4 G 1,5+2X(2X0,75)

Servo cable with PUR outer sheath

  • Number of Conductors: 4 + 2 x (2 x 0.75mm²)
  • Conductor Cross section: 1.5mm²
  • Cable Outer Diameter: 12.3mm
  • Power cores with one or with two control pair(s)
  • Extra-fine wire according to VDE 0295, class 6
  • Core insulation: polypropylene (PP)
  • PUR outer sheath
  • Halogen-free materials
  • Abrasion and notch-resistant
  • Oil-resistant
  • With GN-YE protective conductor
  • For indoor and outdoor use
  • For use in wet areas of machine tools and transfer lines
  • Outer Sheath Colour: Black (RAL 9005)
  • Temperature Range Fixed Install: -50°C to +90°C
  • Temperature Range Flexing: -40°C to +90°C
  • Cable Length: 50M
