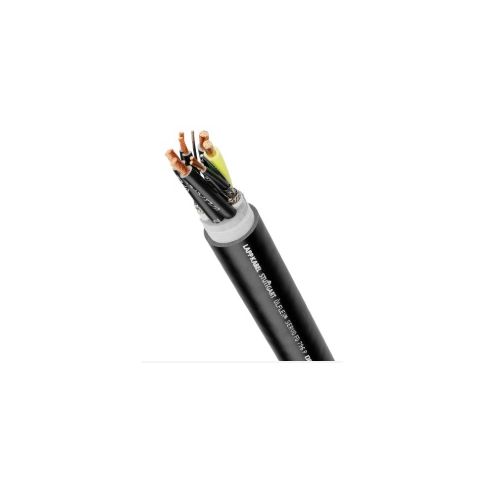

0025330 | OLFLEX SERVO FD 796P 4 G 6+(2X1)+(2X1,5) | Power Chain Cable
Servo cable with PUR outer sheath, Number of Conductors: 4 + (2 x 1.0mm²) + (2 x 1.5mm²), Conductor Cross section: 6.0mm², Cable Outer Diameter: 17.1mm
| Complete Electronics Part No. | 0025330 |
|---|---|
| Manufacturers Part No. | 0025330 |
| Number of Conductors: | 8 |
| Conductor Size: | 6.0mm² |
| Power Chain Series | OLFLEX Servo FD 796 P |
Description
OLFLEX SERVO FD 796P 4 G 6+(2X1)+(2X1,5)
Servo cable with PUR outer sheath
- Number of Conductors: 4 + (2 x 1.0mm²) + (2 x 1.5mm²)
- Conductor Cross section: 6.0mm²
- Cable Outer Diameter: 17.1mm
- Power cores with one or with two control pair(s)
- Extra-fine wire according to VDE 0295, class 6
- Core insulation: polypropylene (PP)
- PUR outer sheath
- Halogen-free materials
- Abrasion and notch-resistant
- Oil-resistant
- With GN-YE protective conductor
- For indoor and outdoor use
- For use in wet areas of machine tools and transfer lines
- Outer Sheath Colour: Black (RAL 9005)
- Temperature Range Fixed Install: -50°C to +90°C
- Temperature Range Flexing: -40°C to +90°C
- Cable Length: 50M
