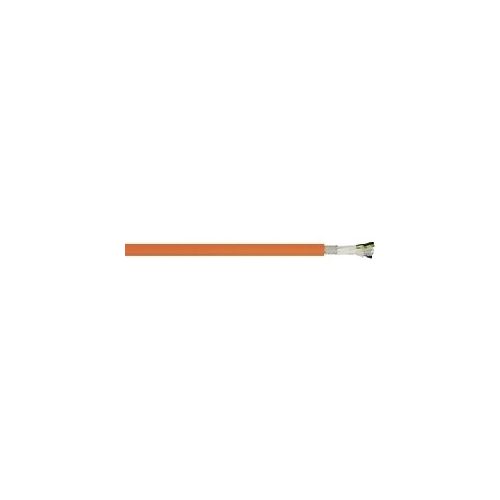

00257011 | SERVO LK SMS 6FX5-1BB21 LC/4G2,5 | Servo Cable
Motor and resolver/encoder cables - certified to Siemans Standard 6FX 5008
| Complete Electronics Part No. | 00257011 |
|---|---|
| Manufacturers Part No. | 00257011 |
| Number of Conductors: | 4 |
| Conductor Size: | 2.5mm² |
Description
SERVO LK SMS 6FX5-1BB21 LC/4G2,5
Servomotor- and feedback cables in acc. to SIEMENS Standard 6FX 5008
- Number of cores: 4
- Core Diameter: 2.5mm²
- Cable Outer Diameter: 9.6mm
- Motor Cable
- With GN-YE protective conductor
- UL/CSA AWM and VDE certified
- EMC Compiant
- Core and pairs are twisted together
- Oil-resistant
- Flame-retardant according to IEC 60332-1-2 & CSA FT1
- Tinned-copper braiding
- Outer sheath made of special PVC compound
- Temperature Range - fixed installaion: -20°C to +80°C
- Reel Length: 50M
