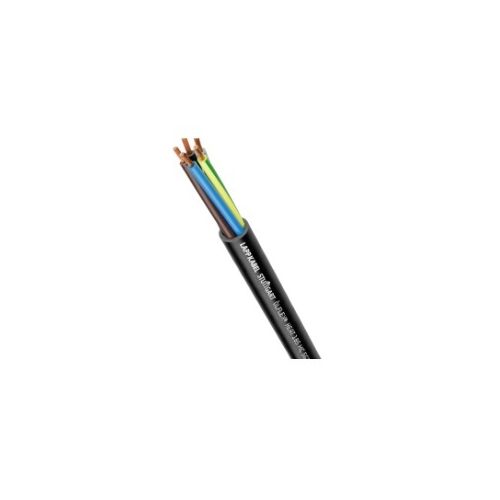

0026010 | ÖLFLEX HEAT 105 MC 7G1 | PVC Cable
PVC Power Cable, Number of Conductors: 7, Conductor Cross Section: 1.0mm², Nominal Voltage: U0/U: 300/500 V
| Complete Electronics Part No. | 0026010 |
|---|---|
| Manufacturers Part No. | 0026010 |
| Number of Conductors: | 7 |
| Conductor Size: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series | OLFLEX HEAT 105 MC |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
Description
PVC Power Cable
Number of Conductors: 7
- Conductor Cross Section: 1.0mm²
- Nominal Voltage: U0/U: 300/500 V
- Cable Outer Diameter: 10.2mm
- With Protective Conductor
- Fine-wire strand made of bare copper wires
- Cores twisted in layers
- Core insulation: PVC
- Outer sheath: PVC
- Outer Sheath Colour: Black
- Core ID: Black with White Numbers
- Resistant to acids and alkalis
- Flame Retardant
- UV Resistant
- Temperature Range: Short Term +105°C
- Cable Length: 50Metres
