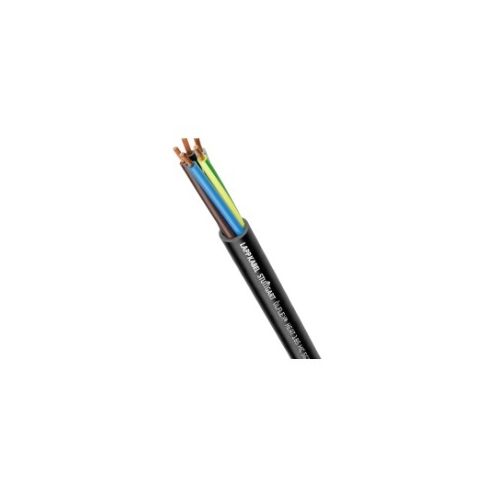

0026012 | ÖLFLEX HEAT 105 MC 3G1,5 | PVC Cable
Unshielded PVC Power Cable, Number of Conductors: 3, Conductor Cross Section: 1.5mm², Nominal Voltage: U0/U: 300/500 V, Working temp. -20°C to 90°C
| Complete Electronics Part No. | 0026012 |
|---|---|
| Manufacturers Part No. | 0026012 |
| Number of Conductors: | 3 |
| Conductor Size: | 1.5mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series | OLFLEX HEAT 105 MC |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
Description
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage, conductor/conductor 2.5 kV
Temperature range, Fixed Install: -20°C to 90°C max. conductor temp.
Temperature, occasionally flexing: 5°C to 90°C max. conductor temp.
Short term temperature max.: 105°C max. conductor temp.
Outer Sheath Insulation: Polyvinylchloride (PVC)
Core insulation: Polyvinylchloride (PVC)
Outer sheath colour: Black, similar to RAL 9005
Core colour code: Up to 5 cores VDE 0293-308, at 6 cores and over ÖLFLEX ® colour code
Not shielded
Oil-resistant - No
PWIS-free - Yes - VDMA 24364-B2-L
UV-resistant - Yes - EN 50525-1
Flame retardant - Yes acc. to IEC 60332-1 - 2
Halogen Free - No
Possible to operate at higher peak temperature (almost 30% more) compared to conventional PVC cables
Largely resistant to acids, alkalis and certain oils at room temperature
Conform to the EU-Directive 2014/35/EU (Low Voltage Directive)
Suitable for fixed and occasional movement Installations
Suitable for use in dry, damp or wet areas
Unshielded PVC power and control cable
Possible to operate at higher peak temperature
Conductor Cross Section: 1.5mm²
Cable Outer Diameter: 8.1mm
Conductors: Bare Copper, acc. to IEC 60228 resp. EN 60228, Class 5 (fine wire)
Number of conductors: 3
With GN/YE ground conductor
Number of conductors: 3
With GN/YE ground conductor
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage, conductor/conductor 2.5 kV
Temperature range, Fixed Install: -20°C to 90°C max. conductor temp.
Temperature, occasionally flexing: 5°C to 90°C max. conductor temp.
Short term temperature max.: 105°C max. conductor temp.
Outer Sheath Insulation: Polyvinylchloride (PVC)
Core insulation: Polyvinylchloride (PVC)
Outer sheath colour: Black, similar to RAL 9005
Core colour code: Up to 5 cores VDE 0293-308, at 6 cores and over ÖLFLEX ® colour code
Not shielded
Oil-resistant - No
PWIS-free - Yes - VDMA 24364-B2-L
UV-resistant - Yes - EN 50525-1
Flame retardant - Yes acc. to IEC 60332-1 - 2
Halogen Free - No
Possible to operate at higher peak temperature (almost 30% more) compared to conventional PVC cables
Largely resistant to acids, alkalis and certain oils at room temperature
Conform to the EU-Directive 2014/35/EU (Low Voltage Directive)
Suitable for fixed and occasional movement Installations
Suitable for use in dry, damp or wet areas
Cable Length: 50 Metres
Lapp Part Number: 0026012
