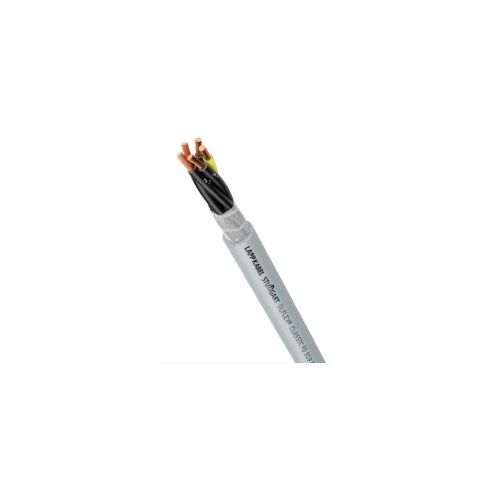

0026107 | OLFLEX CLASSIC FD 810 25G0,5 | Various Applications
Power and control cable, Number of Conductors: 25, Conductor Cross section: 0.5mm², Outer Cable Diameter: 13.7mm, With GN-YE protective conductor
| Complete Electronics Part No. | 0026107 |
|---|---|
| Manufacturers Part No. | 0026107 |
Description
OLFLEX CLASSIC FD 810 25G0,5
Power and control cable
- Number of Conductors: 25
- Conductor Cross section: 0.5mm²
- Outer Cable Diameter: 13.7mm
- With GN-YE protective conductor
- Core Insulation: PVC
- PVC Outer Sheath
- Outer Sheath Colour: Grey (similar to RAL 7001)
- Flame-retardant
- Oil-resistant
- Extra-fine wire strand made of bare copper wires (class 6)
- Non-woven wrapping
- Core ID: Black with white numbers
- Nominal Voltage U0/U: 300/500 V
- Low-adhesive surface
- Temperature Range Fixed Install: -40°C to +80°C
- Temperature Range Flexing: 0°C to +70°C
- Cable Length: 50M
