0026202 | OLFLEX CLASSIC FD 810 CY 4 G 0,5 | Various Applications
Screened power and control cable, Number of Conductors: 4, Conductor Cross section: 0.5mm², Cable Outer Diameter: 7.9mm, With GN-YE protective conductor
| Complete Electronics Part No. | 0026202 |
|---|---|
| Manufacturers Part No. | 0026202 |
| Series: | OLFLEX CLASSIC FD 810 CY |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Power & Control Cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
| Cable Length: | 100 Metres |
Description

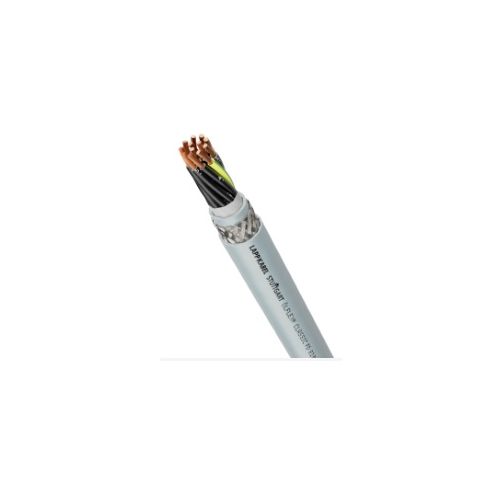

0026202 | ÖLFLEX® CLASSIC FD 810 CY 4G0.5
Highly flexible shielded PVC multi core control cable
Number of Conductors: 4
Conductor Cross section: 0.5mm²
Cable Outer Diameter: 7.9mm
With GN-YE protective conductor
Conductor material: Bare Copper
Shield: Tin-plated copper braiding, coverage = 85 % (nominal value)
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Black with white numbers
Core identification: Numbers (EN50334 & VDE 02931)
Outer Sheath material: Polyvinylchloride (PVC)
Inner Sheath colour: Grey (similar to RAL 7001)
Outer Sheath colour: Grey (similar to RAL 7001)
Wrapping over stranding: Fleece wrapping
Shield: Tin-plated copper braiding, coverage = 85 % (nominal value)
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Black with white numbers
Core identification: Numbers (EN50334 & VDE 02931)
Outer Sheath material: Polyvinylchloride (PVC)
Inner Sheath colour: Grey (similar to RAL 7001)
Outer Sheath colour: Grey (similar to RAL 7001)
Wrapping over stranding: Fleece wrapping
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: 0°C to 70°C
Temperature, dynamic continuously flexing: 0°C to 70°C
Maximum bending cycles: 7,000,000
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: 0°C to 70°C
Temperature, dynamic continuously flexing: 0°C to 70°C
Maximum bending cycles: 7,000,000
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant: - No
Low-adhesion sheath surface - Yes
MUD resistance - No
Oil-resistant - No
Ozone resistant: - No
PWIS-free - Yes
UV-resistant - No
Water resistant: - No
Weather resistant: - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant: - No
Low-adhesion sheath surface - Yes
MUD resistance - No
Oil-resistant - No
Ozone resistant: - No
PWIS-free - Yes
UV-resistant - No
Water resistant: - No
Weather resistant: - No
The cable design allows flexible, continuously flexing use
Durable cable chain use with medium travel distances or increased acceleration
The PVC outer sheath withstands medium mechanical loads
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry and damp rooms
Durable cable chain use with medium travel distances or increased acceleration
The PVC outer sheath withstands medium mechanical loads
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Can be used in dry and damp rooms
Ideal protection against electromagnetic interference thanks to the copper screening
Shorter core stranding allows very small bending radii
Additional robustness thanks to the extruded inner sheath
For use in control, regulating and measurement circuits
CE marked, UKCA marked, EAC certified
Shorter core stranding allows very small bending radii
Additional robustness thanks to the extruded inner sheath
For use in control, regulating and measurement circuits
CE marked, UKCA marked, EAC certified
Cable Length: 100M
Lapp part number: 0026202
