0026334 | OLFLEX CLASSIC FD 810 P 7G1 | Harsh Conditions Cable
Highly flexible power and control cable, Number of Conductors: 7, Conductor Cross section: 1.0mm², Cable Outer Diameter: 9.6mm, With GN-YE conductor
| Complete Electronics Part No. | 0026334 |
|---|---|
| Manufacturers Part No. | 0026334 |
| Series: | OLFLEX CLASSIC FD 810 P |
| Number of Conductors: | 7 |
| Conductor Size: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Power & Control Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
Description

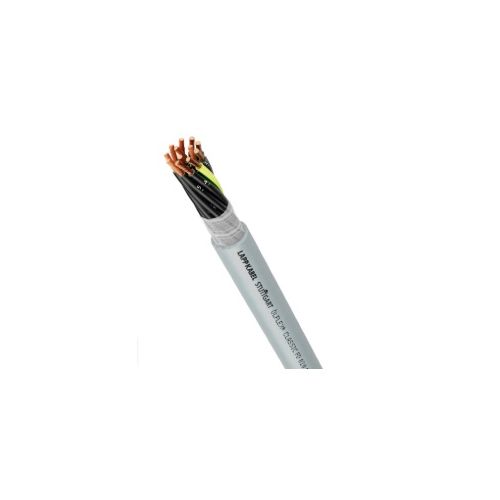

OLFLEX CLASSIC FD 810 P 7G1
Highly flexible power and control cable
- Number of Conductors: 7
- Conductor Cross section: 1.0mm²
- Cable Outer Diameter: 9.6mm
- With GN-YE protective conductor
- Core Insulation: PVC
- PUR Outer Sheath
- Outer Sheath Colour: Grey (similar to RAL 7001)
- Highly Oil Resistance
- Abrasion and notch-resistant
- Low Adhesive Surface
- Well-proven and reliable
- Core ID: Black with white numbers
- Nominal Voltage U0/U: 300/500 V
- Cores twisted in short lay lengths
- Temperature Range Fixed Install: -40°C to +80°C
- Temperature Range Flexing: -5°C to +70°C
- Cable Length: 50M
