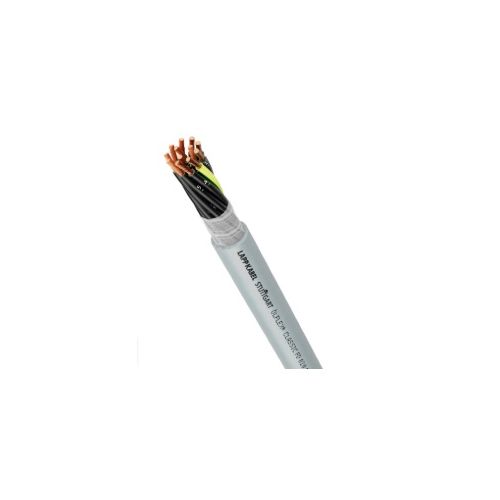

0026382 | OLFLEX CLASSIC FD 810 P 5G4 | Harsh Conditions Cable
Highly flexible power and control cable, Number of Conductors: 5, Conductor Cross section: 4.0mm², Cable Outer Diameter: 13.1mm, With GN-YE conductor
| Complete Electronics Part No. | 0026382 |
|---|---|
| Manufacturers Part No. | 0026382 |
| Series: | OLFLEX CLASSIC FD 810 P |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 4.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Power & Control Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 50 Metres |
Description
0026382 | ÖLFLEX® CLASSIC FD 810 P 5G4
Highly flexible non shielded PUR multi core control cable
Number of Conductors: 5
Conductor Cross section: 4.0mm²
Cable Outer Diameter: 13.1mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core identification: Numbers (EN50334 & VDE 02931)
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Black with white numbers
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Grey (similar to RAL 7001)
Wrapping over stranding: Fleece wrapping
Core identification: Numbers (EN50334 & VDE 02931)
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Black with white numbers
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Grey (similar to RAL 7001)
Wrapping over stranding: Fleece wrapping
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C
Temperature, dynamic continuously flexing: -5°C to 70°C
Maximum bending cycles: 7,000,000
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 80°C
Temperature, occasionally moved: -5°C to 70°C
Temperature, dynamic continuously flexing: -5°C to 70°C
Maximum bending cycles: 7,000,000
Chemical resistant - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant: - Yes
Low-adhesion sheath surface - Yes
MUD resistance - Yes acc. to IEC 61892-4
Oil-resistant - Yes acc. to EN 50363-10-2
Ozone resistant: - Yes, acc. to EN 50396, method B
PWIS-free - Yes
UV-resistant - Yes, EN ISO 4892-2
Water resistant: - Yes
Weather resistant: - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Hydrolysis resistant: - Yes
Low-adhesion sheath surface - Yes
MUD resistance - Yes acc. to IEC 61892-4
Oil-resistant - Yes acc. to EN 50363-10-2
Ozone resistant: - Yes, acc. to EN 50396, method B
PWIS-free - Yes
UV-resistant - Yes, EN ISO 4892-2
Water resistant: - Yes
Weather resistant: - Yes
The cable design allows flexible, continuously flexing use
For use in control, regulating and measurement circuits
The PUR outer sheath withstands high mechanical loads
Durable cable chain use with medium travel distances or increased acceleration
Can be used in dry, wet and especially in harsh and oily environments
For use in control, regulating and measurement circuits
The PUR outer sheath withstands high mechanical loads
Durable cable chain use with medium travel distances or increased acceleration
Can be used in dry, wet and especially in harsh and oily environments
Shorter core stranding allows very small bending radii
Outer sheath material is resistant to abrasion, notches and cuts
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified
Outer sheath material is resistant to abrasion, notches and cuts
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified
Cable Length: 50M
Lapp part number: 0026382
