0026616 | OLFLEX FD 90 1G70 | Various Applications
Highly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 70mm², Cable Outer Diameter: 18.3mm, Core Insulation: PVC
| Complete Electronics Part No. | 0026616 |
|---|---|
| Manufacturers Part No. | 0026616 |
| Series: | OLFLEX FD 90 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 70mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Single Core Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PVC |
| Cable Length: | 500 Metres |
Description

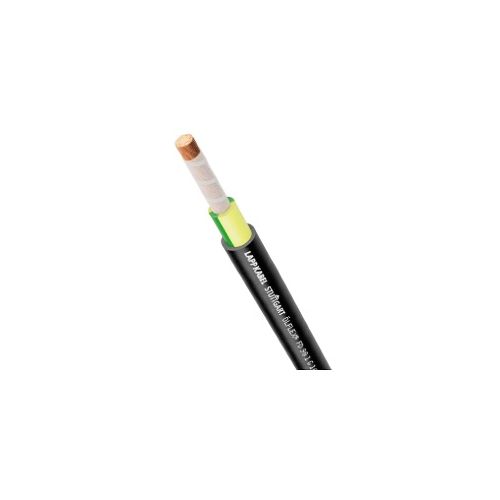

0026616 | ÖLFLEX® FD 90 1G70
Highly flexible non shielded PVC single core control cable
Number of Conductors: 1
Conductor Cross section: 70mm²
Cable Outer Diameter: 18.3mm
Conductor material: Bare Copper
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Green / Yellow
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC)
Core Insulation colour: Green / Yellow
Outer Sheath material: Polyvinylchloride (PVC)
Outer Sheath colour: Black (RAL 9005)
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
Chemical resistant - No
UV-resistant - Yes
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2
Low-adhesion sheath surface: Yes
PWIS-free - Yes
Chemical resistant - No
UV-resistant - Yes
Halogen Free - No
Flame retardant - Yes IEC 60332-1-2
Low-adhesion sheath surface: Yes
PWIS-free - Yes
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Rated voltage of 600V rms according to UL AWM
Temperature, fixed installation: -40°C to 80°C according to IEC
Temperature, occasionally moved: -5°C to 70°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 70°C according to IEC
Maximum bending cycles: 7,000,000
Rated voltage of 600V rms according to UL AWM
Temperature, fixed installation: -40°C to 80°C according to IEC
Temperature, occasionally moved: -5°C to 70°C according to IEC
Temperature, dynamic continuously flexing: -5°C to 70°C according to IEC
Maximum bending cycles: 7,000,000
The cable design allows flexible, continuously flexing use
Suitable for medium mechanical stress
Durable cable chain use with medium travel distances or acceleration
Also suitable for fixed wiring in control cabinets
Suitable for medium mechanical stress
Durable cable chain use with medium travel distances or acceleration
Also suitable for fixed wiring in control cabinets
Can be used in dry, damp or wet interiors
Specially designed for energy circuits of servo motors driven by frequency converters
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognised
Specially designed for energy circuits of servo motors driven by frequency converters
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
CE marked, UKCA marked, EAC certified, UL recognised, cUR recognised
Cable Length: 500M
Lapp part number: 0026616
