0026709 | OLFLEX ROBUST FD C 3G1 | Harsh Conditions Cable
Screened all-weather control cable, Number of Conductors: 3, Conductor Cross section: 1.0mm², Cable Outer Diameter: 9.8mm, With GN-YE conductor, length: 100m
| Complete Electronics Part No. | 0026709 |
|---|---|
| Manufacturers Part No. | 0026709 |
| Series: | OLFLEX ROBUST FD C |
| Number of Conductors: | 3 |
| Conductor Size: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Control Cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | TPE |
| Cable Length: | 100 Metres |
Description

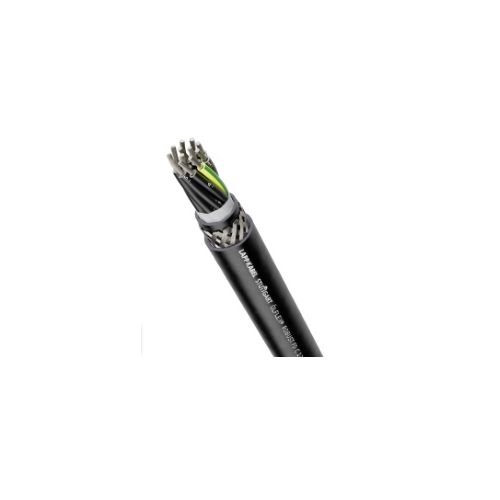

0026709 | ÖLFLEX® ROBUST FD C 3G1
Highly flexible shielded TPE multi core control cable
Number of Conductors: 3
Conductor Cross section: 1.0mm²
Cable Outer Diameter: 9.8mm
With GN-YE protective conductor
Conductor material: Tin plated Copper
Shield: Tin-plated copper braiding
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core Insulation colour: Black
Inner sheath material: Thermoplastic elastomers (TPE)
Inner sheath colour: Black
Outer Sheath material: Thermoplastic elastomers (TPE)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shield: Tin-plated copper braiding
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core Insulation colour: Black
Inner sheath material: Thermoplastic elastomers (TPE)
Inner sheath colour: Black
Outer Sheath material: Thermoplastic elastomers (TPE)
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 105°C
Temperature, occasionally moved: -40°C to 105°C
Temperature, dynamic continuously flexing: -40°C to 105°C
Maximum bending cycles: 10,000,000
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 105°C
Temperature, occasionally moved: -40°C to 105°C
Temperature, dynamic continuously flexing: -40°C to 105°C
Maximum bending cycles: 10,000,000
Chemical resistant - Yes
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant: Yes
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
Ozone resistant: Yes, acc. to EN 50396, method B
PWIS-free - No
UV-resistant - Yes, EN ISO 4892-2 (cables with a black sheath are suitable for permanent outdoor use)
Water resistant: Yes
Weather resistant: Yes, acc. to HD 605 S2
Flame retardant - No
Halogen Free - Yes
Hydrolysis resistant: Yes
Oil-resistant - Yes acc. to EN 50363-4-1: TM5
Ozone resistant: Yes, acc. to EN 50396, method B
PWIS-free - No
UV-resistant - Yes, EN ISO 4892-2 (cables with a black sheath are suitable for permanent outdoor use)
Water resistant: Yes
Weather resistant: Yes, acc. to HD 605 S2
Ideal protection against electromagnetic interference thanks to copper screening
The cable design allows flexible, continuously flexing use
Particularly suitable in conjunction with water-soluble cleaning agents and coolants
Durable cable chain use with long travel distances or high acceleration
Also suitable as a flexible power or extension cable.
Typical areas of application are washing plants, sewage treatment plants, composting plants and applications in the food industry
The cable design allows flexible, continuously flexing use
Particularly suitable in conjunction with water-soluble cleaning agents and coolants
Durable cable chain use with long travel distances or high acceleration
Also suitable as a flexible power or extension cable.
Typical areas of application are washing plants, sewage treatment plants, composting plants and applications in the food industry
Can be used in dry, wet and especially in harsh and oily environments.
Resistant to ammonia compounds, biogases, as well as plant, animal or synthetic fats and oils (e.g. bio-oils and ester-based hydraulic oils)
Tested resistance to ECOLAB® disinfectants and cleaning agents.
Resistant to hot water and steam when subjected to frequent steam jet cleaning
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, Ecolab certified
Resistant to ammonia compounds, biogases, as well as plant, animal or synthetic fats and oils (e.g. bio-oils and ester-based hydraulic oils)
Tested resistance to ECOLAB® disinfectants and cleaning agents.
Resistant to hot water and steam when subjected to frequent steam jet cleaning
Suitable for outdoor use, subject to the temperature range
CE marked, UKCA marked, EAC certified, Ecolab certified
Cable Length: 100M
Lapp part number: 0026709
