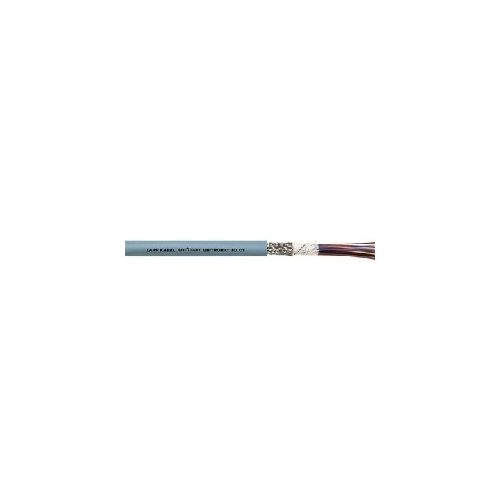

0027427 | UNITRONIC FD CY 4X0.25 | Screened Data Cable
Highly flexible low frequency, screened data transmission cable with PVC outer sheath for power chain use, 4 Core x 0.25mm²
| Complete Electronics Part No. | 0027427 |
|---|---|
| Manufacturers Part No. | 0027427 |
| Number of Conductors: | 4 |
| Conductor Size: | 0.25mm² |
| Cable Jacket: | PVC |
Description
UNITRONIC FD CY 4X0.25
Highly Flexible Screened Data Cable
- Number of Cores: 4
- Conductor Diameter: 0.25mm²
- Low-adhesive surface
- Flame-retardant according IEC 60332-1-2
- For use in power chains
- Core insulation made of PVC
- Non-woven wrapping
- Tinned Copper Braiding
- Outer sheath made of PVC
- Outer sheath colour: grey (RAL 7001)
- Core ID: DIN 47100, refer to Appendix T9
- Peak operating voltage: 350V not for power applications
- Temperature Range fixed installation: -40°C to +80°C
