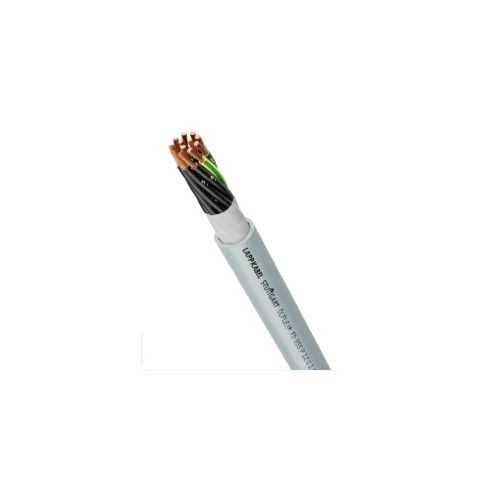

0027545 | OLFLEX FD 855 P 2X0,75 | Harsh Conditions Cable
Halogen-free, highly flexible control cable, Number of Conductors: 2, Conductor Cross section: 0.75mm², Cable OD: 5.6mm, Without GN-YE conductor
| Complete Electronics Part No. | 0027545 |
|---|---|
| Manufacturers Part No. | 0027545 |
| Series: | OLFLEX FD 855 P |
| Number of Conductors: | 2 |
| Conductor Size: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description
0027545 | ÖLFLEX® FD 855 P 2X0.75
Highly flexible, Halogen free, multi core control cable
Number of Conductors: 2
Conductor Cross section: 0.75mm²
Cable Outer Diameter: 5.6mm
Without GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Grey (RAL 7001)
Wrapping over stranding: Fleece wrapping
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Grey (RAL 7001)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
MUD resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
MUD resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 80°C according to IEC
Temperature, occasionally moved: -40°C to 80°C according to IEC
Temperature, dynamic continuously flexing: -40°C to 80°C according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 80°C according to IEC
Temperature, occasionally moved: -40°C to 80°C according to IEC
Temperature, dynamic continuously flexing: -40°C to 80°C according to IEC
Can be used in dry, wet and especially in harsh and oily environments
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
The outer sheath material is resistant to abrasion, notches and cuts
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
The outer sheath material is resistant to abrasion, notches and cuts
Suitable for outdoor use
Cable design allows highly flexible, continuously flexing use
Flexible use at temperatures down to -40°C
Operating voltage of 1000 V according to UL, permitted for North America
CE marked, UKCA marked, EAC certified, UL recognised
Cable design allows highly flexible, continuously flexing use
Flexible use at temperatures down to -40°C
Operating voltage of 1000 V according to UL, permitted for North America
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 100M
Lapp part number: 0027545
