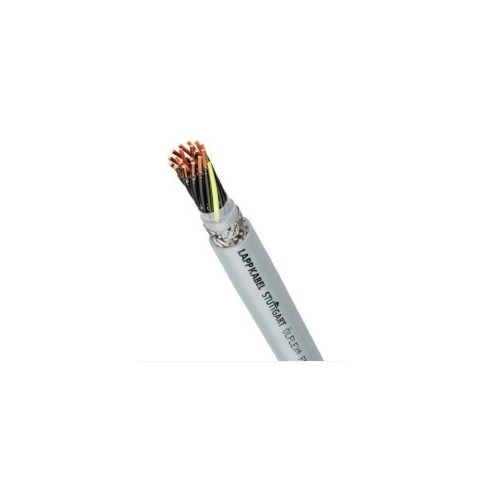

0027610 | OLFLEX FD 855 CP 12G0,5 | Harsh Conditions Cable
Highly flexible, screened power and control cable, No of Conductors: 12, Conductor Cross section: 0.5mm², Cable OD: 10.9mm, With GN-YE conductor
| Complete Electronics Part No. | 0027610 |
|---|---|
| Manufacturers Part No. | 0027610 |
| Series: | OLFLEX FD 855 CP |
| Number of Conductors: | 12 |
| Conductor Cross Section: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 50 Metres |
Description
0027610 | ÖLFLEX® FD 855 CP 12G0.5
Highly flexible, Shielded multi core control cable
Number of Conductors: 12
Conductor Cross section: 0.5mm²
Cable Outer Diameter: 10.9mm
With GN-YE protective conductor
Conductor material: Bare Copper
Type of overall screen: Tin-plated copper braiding, Coverage = 85% (nominal value)
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Grey (RAL 7001)
Inner Sheath colour: Grey (RAL 7001)
Wrapping over stranding: Fleece wrapping
Type of overall screen: Tin-plated copper braiding, Coverage = 85% (nominal value)
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Thermoplastic elastomers (TPE)
Outer Sheath material: Polyurethane (PUR)
Outer Sheath colour: Grey (RAL 7001)
Inner Sheath colour: Grey (RAL 7001)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
MUD resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
MUD resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 80°C according to IEC
Temperature, occasionally moved: -40°C to 80°C according to IEC
Temperature, dynamic continuously flexing: -40°C to 80°C according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -50°C to 80°C according to IEC
Temperature, occasionally moved: -40°C to 80°C according to IEC
Temperature, dynamic continuously flexing: -40°C to 80°C according to IEC
Can be used in dry, wet and especially in harsh and oily environments
Ideal protection against electromagnetic interference
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The outer sheath material is resistant to abrasion, notches and cuts
Copper screening braiding with a high degree of coverage
Ideal protection against electromagnetic interference
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The outer sheath material is resistant to abrasion, notches and cuts
Copper screening braiding with a high degree of coverage
Suitable for outdoor use
Cable design allows highly flexible, continuously flexing use
Flexible use at temperatures down to -40°C
Operating voltage of 1000 V according to UL, permitted for North America
CE marked, UKCA marked, EAC certified, UL recognised
Cable design allows highly flexible, continuously flexing use
Flexible use at temperatures down to -40°C
Operating voltage of 1000 V according to UL, permitted for North America
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 50M
Lapp part number: 00276
