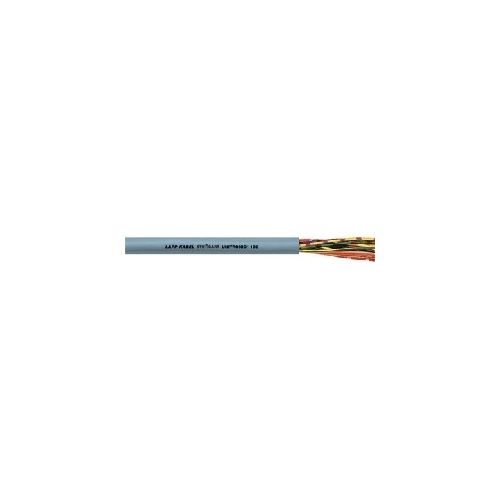

0028019 | UNITRONIC 100 24X0,14 | DIN Colour Coded Cables

Low Frequency PVC Data Cable, Flame retardant, Unitronic colour coding, Number of cores: 24, Condutor Diameter: 0.14mm² , Cable outer diameter 7.2mm
More Information
Complete Electronics Part No 0028019
Manufacturers Part No. 0028019
Series UNITRONIC 100
Number of Conductors 24
Conductor Size 0.14mm²
Shielding Not Shielded
Cable Jacket PVC
Description

UNITRONIC 100 24X0,14

Low Frequency PVC Data Cable

  • Flame retardant
  • Unitronic colour coding
  • Number of cores: 24
  • Conductor Diameter: 0.14mm²
  • Cable outer diameter 7.2mm
  • Core insulation: PVC
  • Outer Sheath: PVC
  • Outer sheath colour: grey (RAL7001)
  • Temperature Range - Fixed install: -40°C to +80°C
  • Temperature range occasional flexing: -5°C to +70°C
  • For use in the milliampere range
