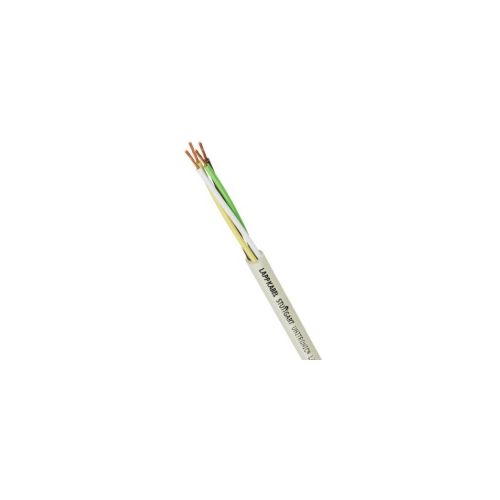

0028604 | UNITRONIC LiYY 4X0,75 | DIN Colour Coded Cables
Low Frequency PVC Data Cable, Flame retardant, DIN 47100 colour coding, Number of cores: 4, Conductor Diameter: 0.75mm² , Cable outer diameter 6.1mm
| Complete Electronics Part No. | 0028604 |
|---|---|
| Manufacturers Part No. | 0028604 |
| Series: | UNITRONIC LIYY |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.75mm² |
| Shielding: | Not Shielded |
| Cable Jacket: | PVC |
Description
0028604 UNITRONIC® LiYY 4X0.75
Low-frequency data cable, Flexible
Product Design
Design based on standard VDE 0812 and EN50288-7
Classification of fire behaviour, EN 305/2011
Used in dry and damp interiors
Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range
Number of conductors: 4
Not Shielded
Outer sheath: PVC compound (Polyvinylchloride)
Core ID, acc. to DIN 47100
Core ID, acc. to DIN 47100
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Must not be connected to the mains supply voltage
Number of condutors: 4
Nominal core cross section: 0.75mm²
Nominal outer diameter: 6.1 mm
Maximum operating voltage: 0.14 mm²: 350 V (not for power applications) ≥ 0.25 mm²: 500 V (not for power applications)
Conductor design: Bare copper fine wire
Conductor Colour Code: DIN47100
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outer Sheath colour: Grey
Armouring type: None
Weight: 69 kg/km
Product Features
Flame retardant - Yes -IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
With robust, flexible and resistant PVC outer sheath
For data and signal transmission in the low-frequency range.
For use in control, regulation and measurement circuits
Can be used universally at machine interfaces for many applications
Can be used in dry and damp environments.
For fixed installation and occasional movement
EAC-certified, CE marked, CPR Fire class: Eca
Lapp part number: 0028604
Length: 100M
