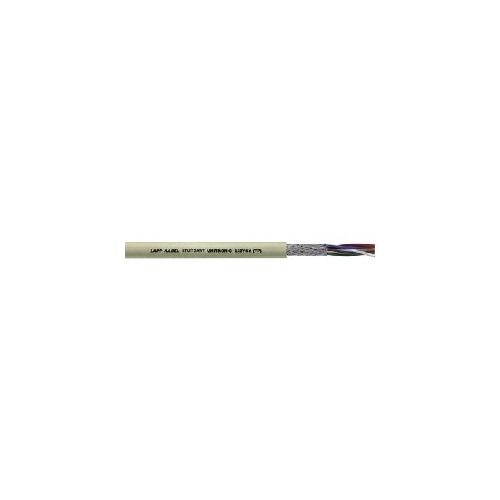

0031336 | UNITRONIC Li2YCY (TP) 1X2X0,5 | Low Capacitance Cable
UNITRONIC Li2YCY (TP) 1X2X0,5, Low-capacitance screened PVC data cable , Number of conductors: 1 x 2 Twisted Pair, Conductor Diameter: 0.5mm²
| Complete Electronics Part No. | 0031336 |
|---|---|
| Manufacturers Part No. | 0031336 |
| Series: | UNITRONIC Li2YCY (TP) |
| Conductor Cross Section: | 0.5mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
| Twisted Pair: | X 1 |
Description
UNITRONIC Li2YCY (TP) 1X2X0,5
Low-capacitance screened PVC data cable
- Number of conductors: 1 x 2 Twisted Pair
- Condutor Diameter: 0.5mm²
- Core ID: DIN 47100 Colour coded
- RS422/ RS485 interface wiring Cable
- Suitable for transmission rates up to 10 Megabits per second
- Designed for indoor and outdoor use
- Flame-retardant according IEC 60332-1-2
- Tinned-copper braiding
- Outer sheath colour: pebble grey (RAL 7032)
- Outer sheath made of PVC
- Outer sheath colour: pebble grey (RAL 7032)
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
- Reel Length: 100M
